Rear Crossmember Replacement (AWD)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

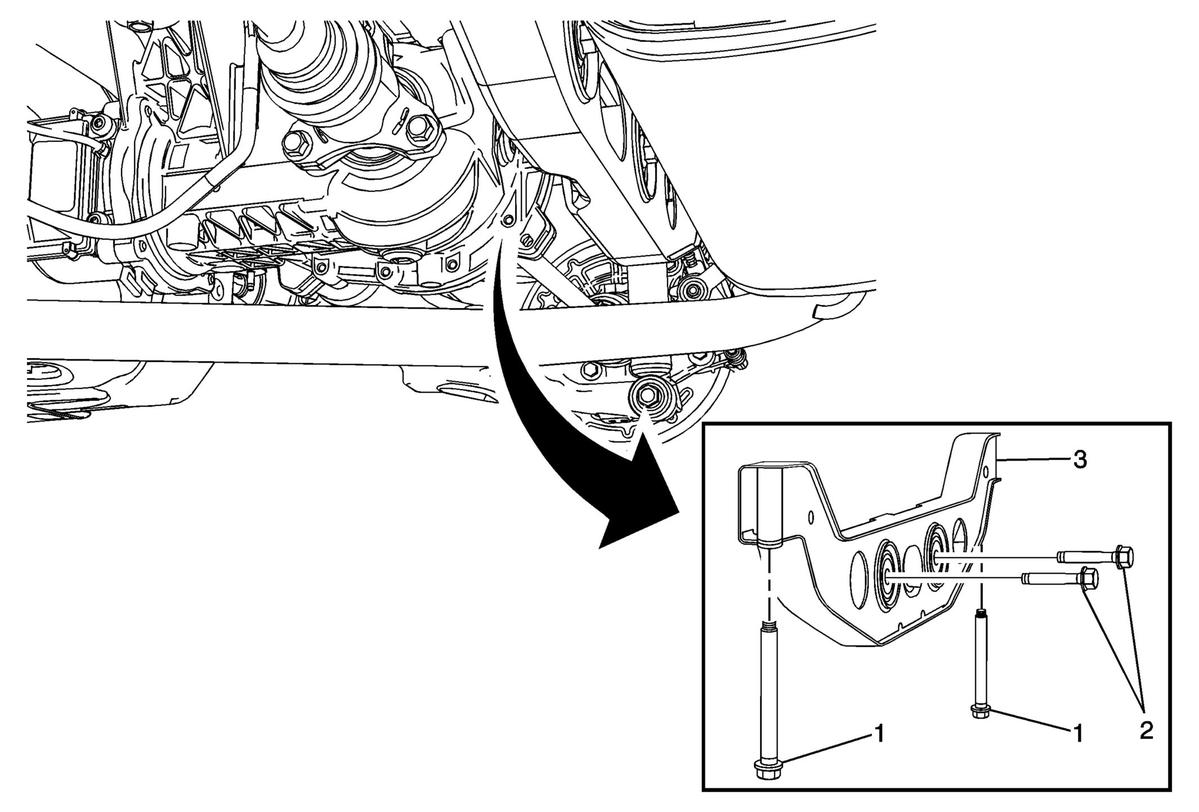

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the exhaust system. Refer to Exhaust Muffler Replacement (2H0)Exhaust Muffler Replacement (LUV)Exhaust Muffler Replacement (LE2) .
1	Rear Suspension Frame Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 100 N.m (74 lb ft)
2	Rear Differential Carrier Bolt (Qty: 2) Tighten 108 N.m (80 lb ft)
3	Rear Crossmember Procedure Support the right side of the rear differential Module (RDM) assembly with a hydraulic jack before removing the rear crossmember and rear suspension frame bolts.
