Front Compartment Front Center Insulator Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

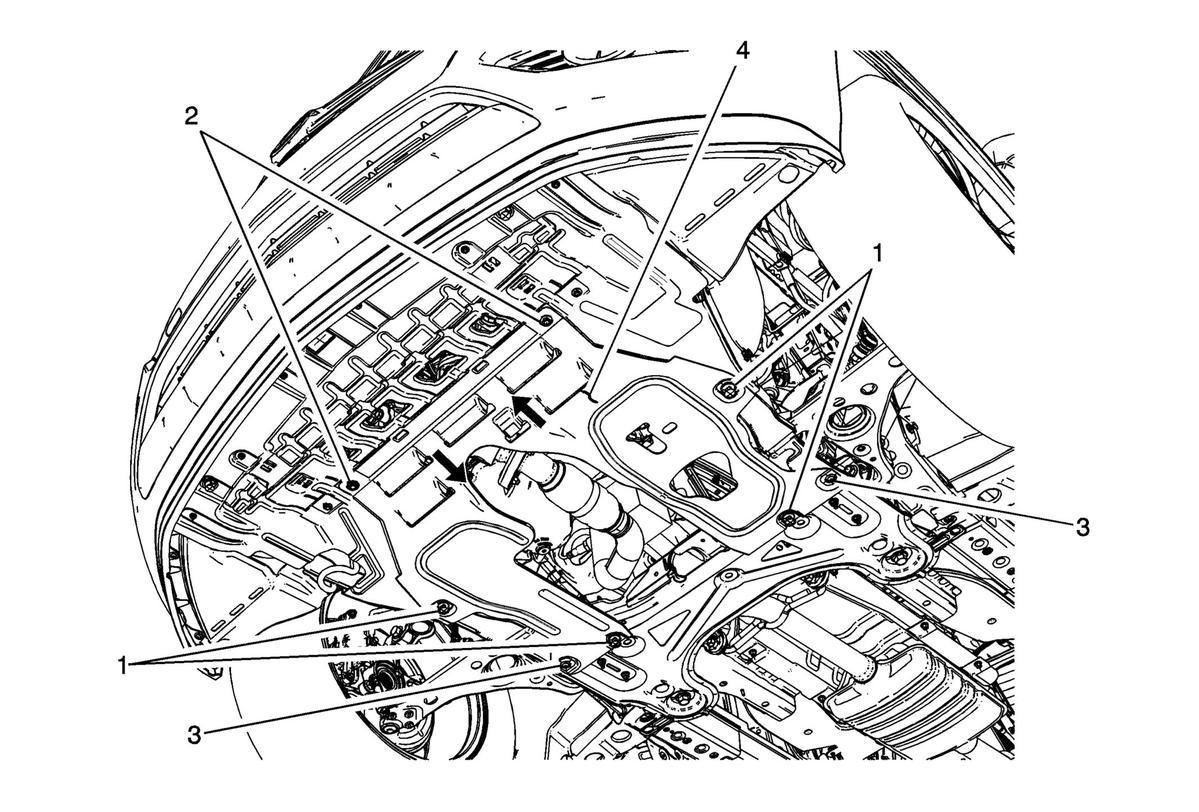

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Front Compartment Front Center Insulator Push-In Retainer (Qty: 4) |
| 2 | Front Compartment Front Center Insulator Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Front Compartment Front Center Insulator Screw (Qty: 2) Tighten 2.5 N.m (22 lb in) |
| 4 | Front Compartment Front Center Insulator Procedure Disengage the fascia opening lower cover front alignment tabs. |
