Transfer Case Rear Output Shaft Removal

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

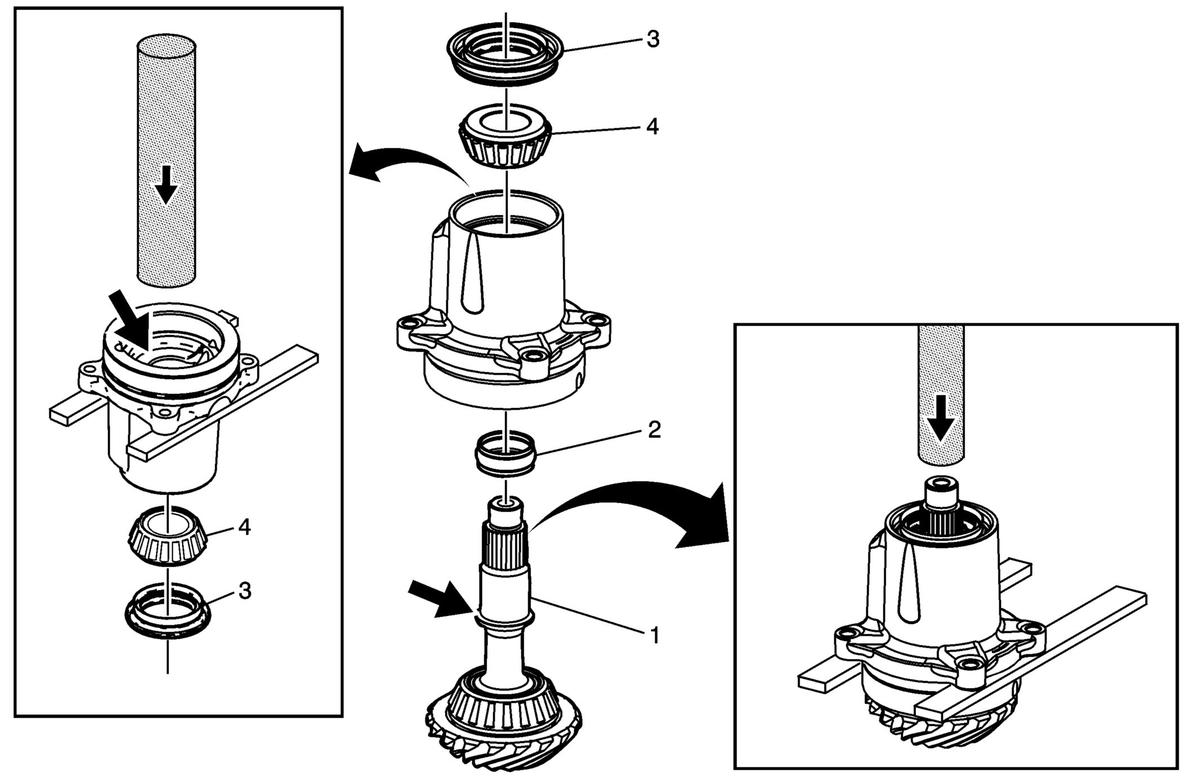

Callout	Component Name
1	Transfer Case Rear Output Shaft Assembly Procedure Use a press to remove the shaft and bearings from the housing. Press the shaft downward only until separated from the rear bearing. Once the shaft and bearing are separated, the shaft must be angled and removed by hand to avoid contact between the raised surface in the rear output shaft housing and the raised surface on the rear output shaft.
2	Transfer Case Rear Output Shaft Bearing Spacer NOTE: Discard the rear output shaft bearing spacer.
3	Transfer Case Rear Output Shaft Seal NOTE: Use a press to remove the seal and bearing from the housing.
4	Transfer Case Rear Output Shaft Rear Bearing NOTE: Use a press to remove the bearing and seal from the housing.
