Air Conditioning Condenser Replacement (LUV)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Recover refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) . Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick) . Remove the radiator air lower and upper baffles. Refer to Radiator Air Lower Baffle and Deflector Replacement (LE2)Radiator Air Lower Baffle and Deflector Replacement (2H0)Radiator Air Lower Baffle and Deflector Replacement (LUV) , and Radiator Air Upper Baffle and Deflector Replacement (2H0)Radiator Air Upper Baffle and Deflector Replacement (LE2 LUV) . Remove air conditioning condenser hose assembly from the condenser and position out of the way. Refer to Air Conditioning Condenser Hose Replacement (2H0) Air Conditioning Condenser Hose Replacement (LUV) Air Conditioning Condenser Hose Replacement (LE2) .

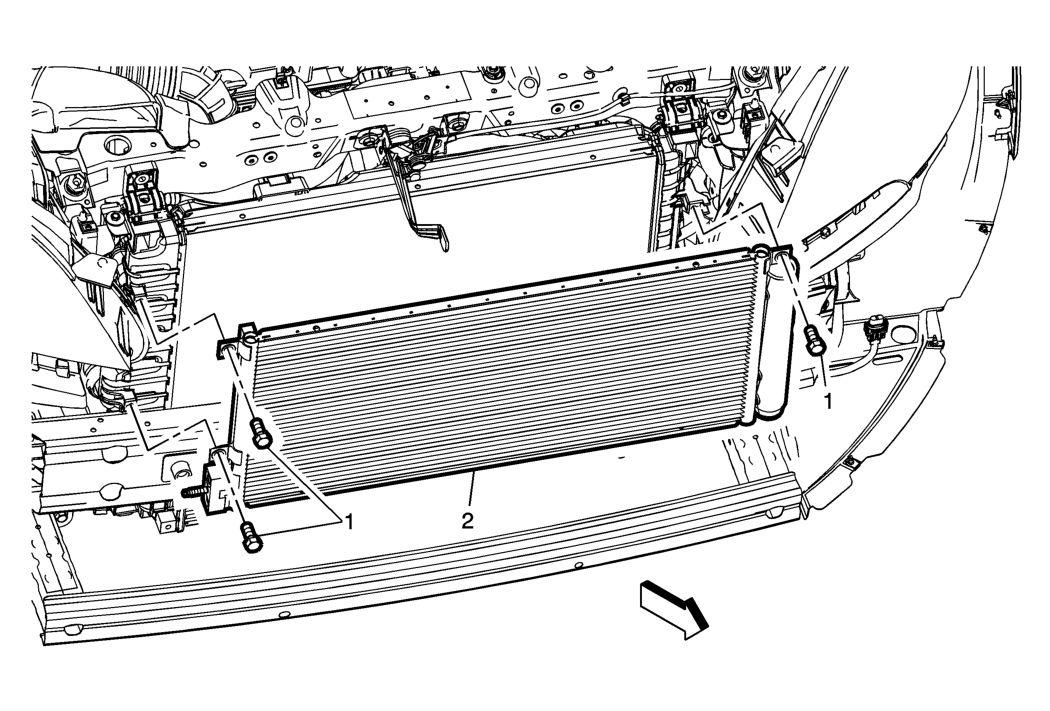

1	Air Conditioning Condenser Assembly Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Air Conditioning Condenser Assembly Procedure Transfer all necessary components.

Callout

Component Name

Preliminary Procedure

Recover refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick) .
Remove the radiator air lower and upper baffles. Refer to Radiator Air Lower Baffle and Deflector Replacement (LE2)Radiator Air Lower Baffle and Deflector Replacement (2H0)Radiator Air Lower Baffle and Deflector Replacement (LUV) , and Radiator Air Upper Baffle and Deflector Replacement (2H0)Radiator Air Upper Baffle and Deflector Replacement (LE2 LUV) .
Remove air conditioning condenser hose assembly from the condenser and position out of the way. Refer to Air Conditioning Condenser Hose Replacement (2H0) Air Conditioning Condenser Hose Replacement (LUV) Air Conditioning Condenser Hose Replacement (LE2) .

Air Conditioning Condenser Assembly Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Air Conditioning Condenser Assembly
Procedure
Transfer all necessary components.
