Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)

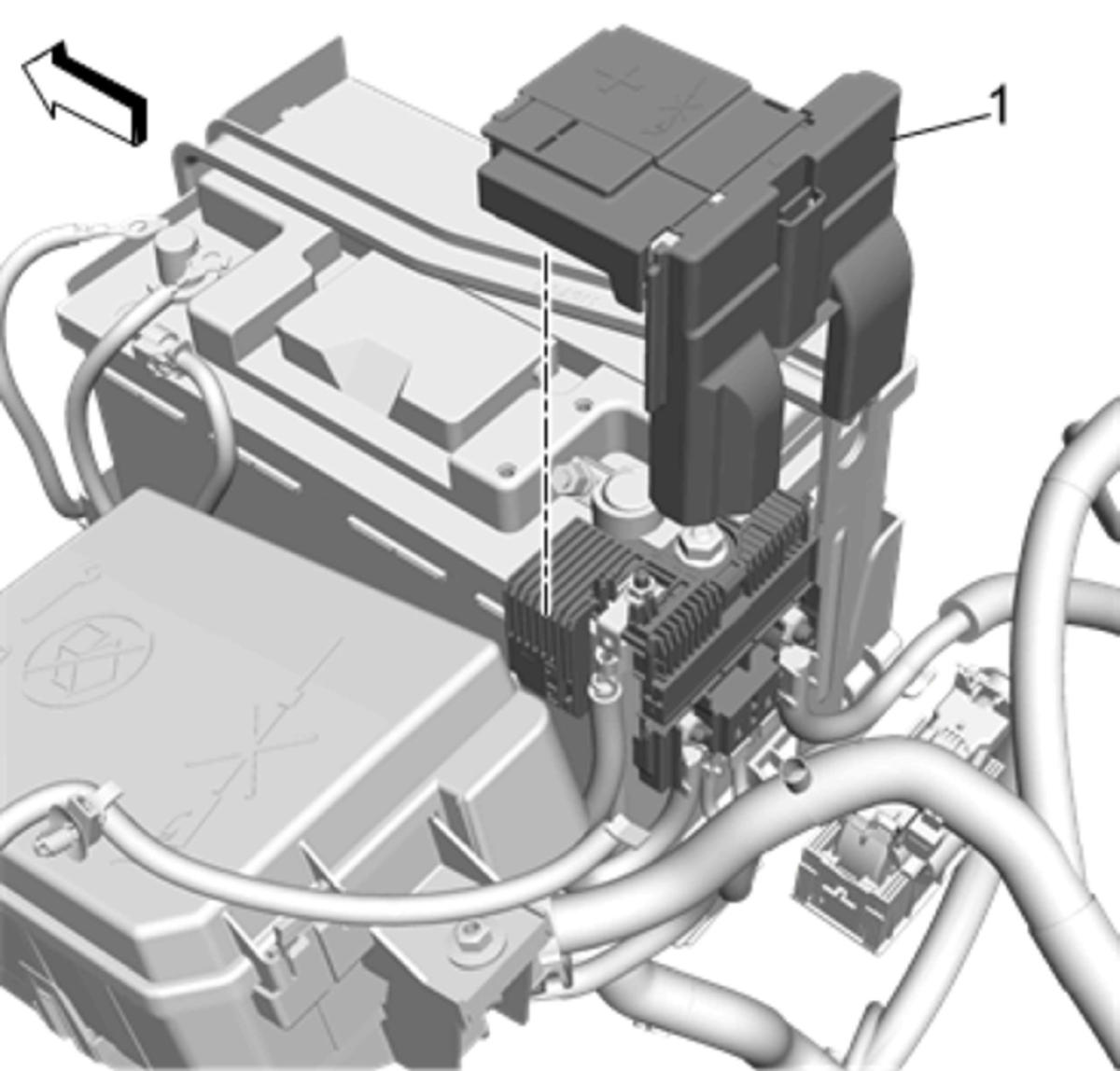

  2. GM4751259Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Junction Block Cover (1) - Remove

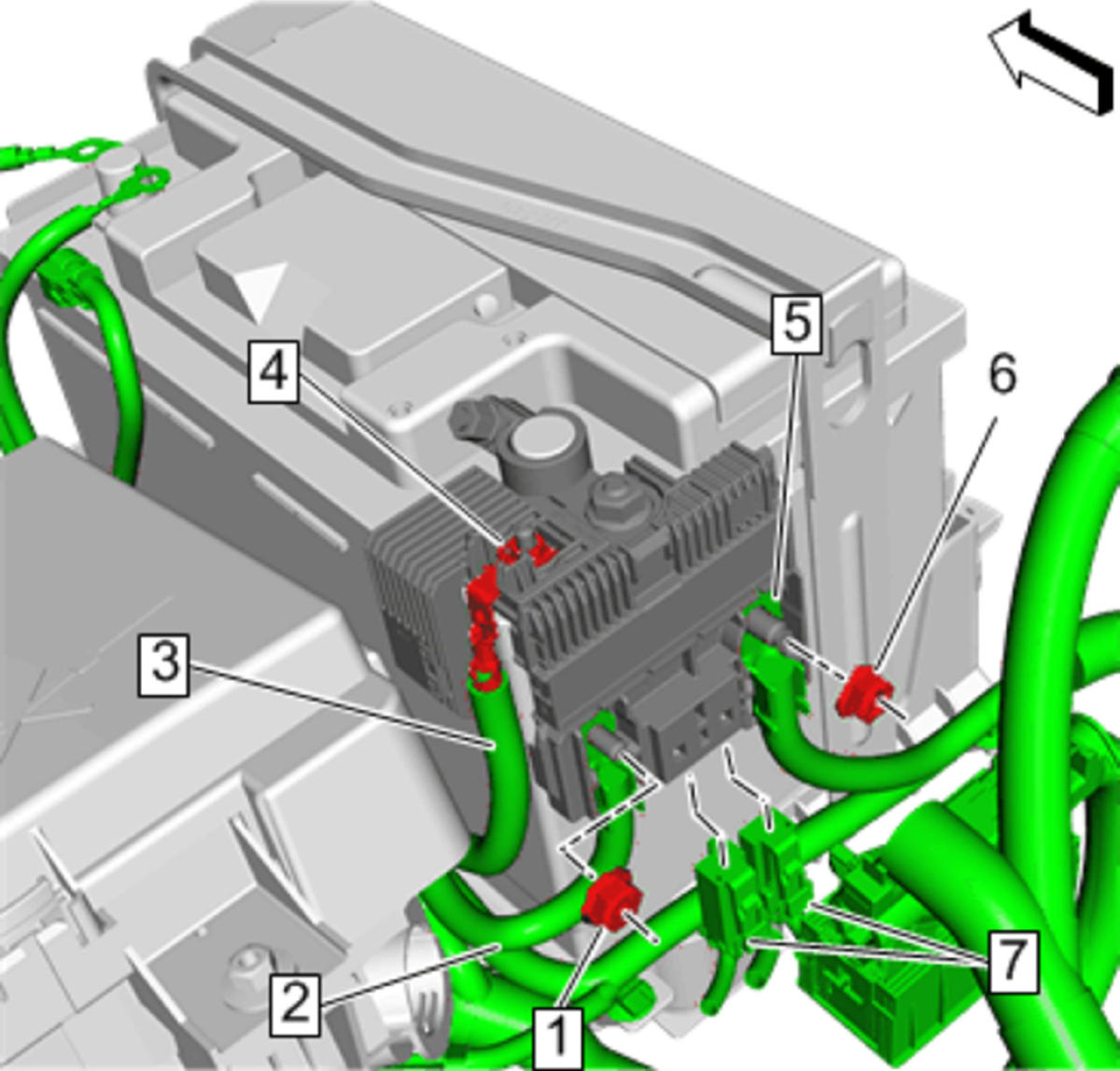

  3. GM4751260Courtesy of GENERAL MOTORS COMPANY

    Body Harness Terminal Nut (4) - Loosen

  4. Body Harness (3) - Remove
  5. Battery Positive Cable Nut (1) - Remove
  6. Battery Positive Cable (2) - Remove
  7. Battery Positive Cable Nut (6) - Remove
  8. Battery Positive Cable (5) - Remove
  9. Electrical Connector (7) - Disconnect [2x]

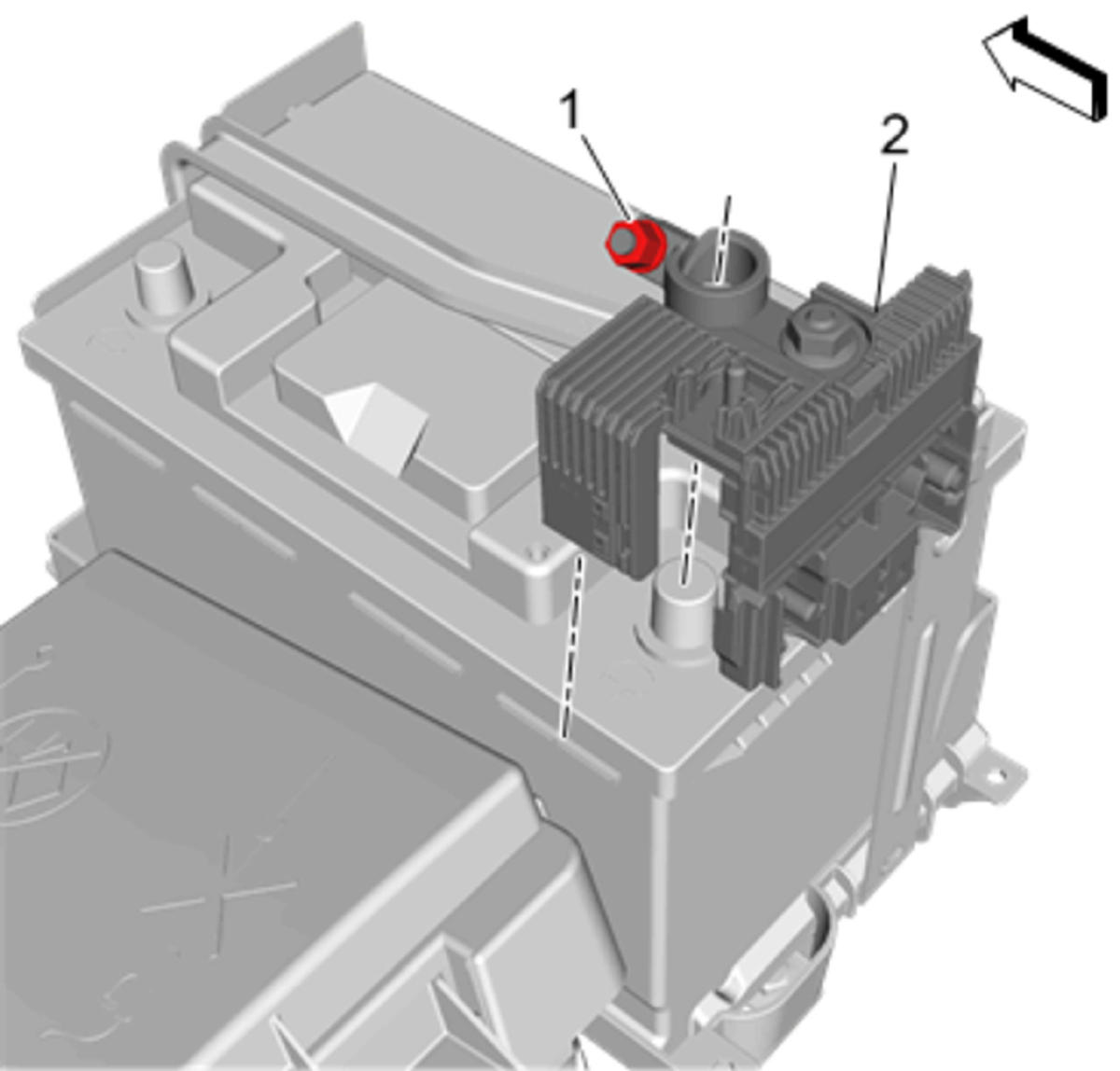

  10. GM4751262Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Post Clamp Nut (1) - Loosen

  11. Battery Positive Cable Junction Block (2) - Remove
