Roof Console Replacement

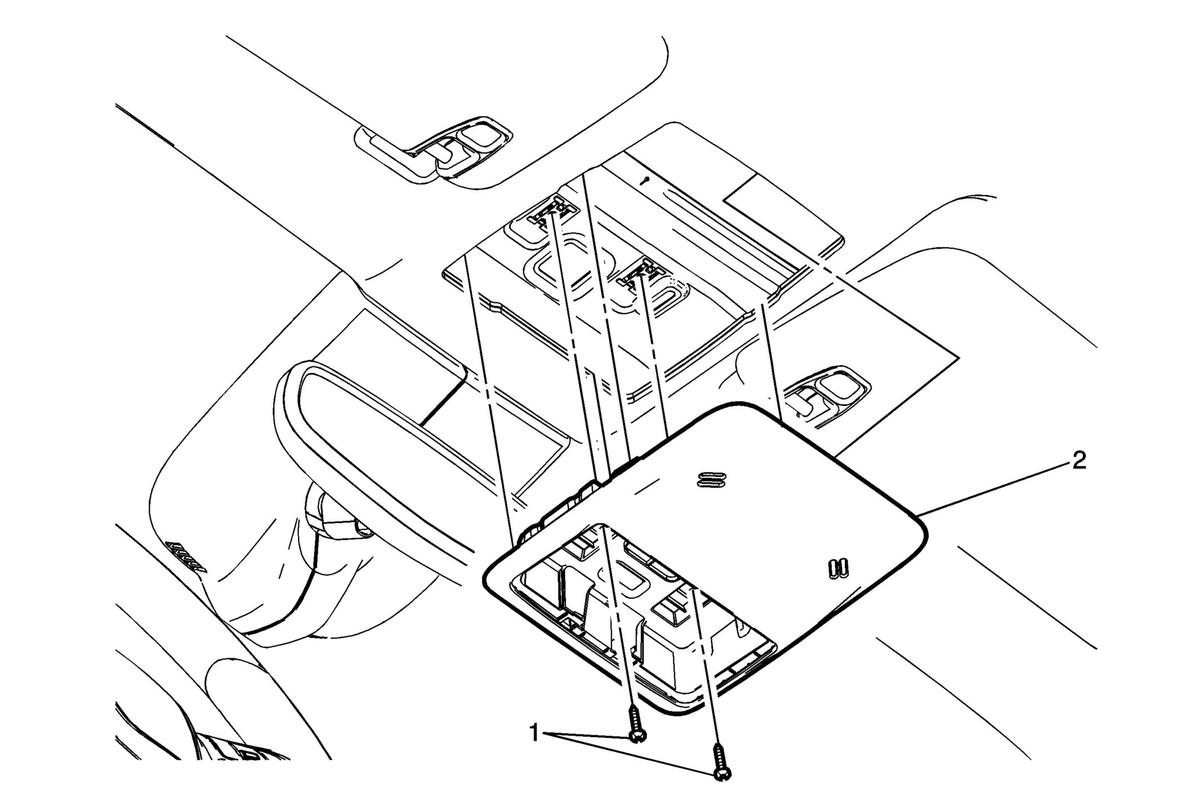

GM2787267

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the center reading lamp. Refer to Center Reading Lamp Replacement .

1

Roof Console Fasteners (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Roof Console Assembly

Procedure

Grasp the roof console assembly and pull downward releasing the retainer clips securing the roof console assembly to the headlining assembly.
Disconnect the electrical connections.
When replacing the roof console assembly, transfer all necessary components.
