Home >> Buick >> 2019 >> Encore Base >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Schematic Wiring Diagrams (Trax) >> Keyless Entry - Virtual Key (Trax with BOP)

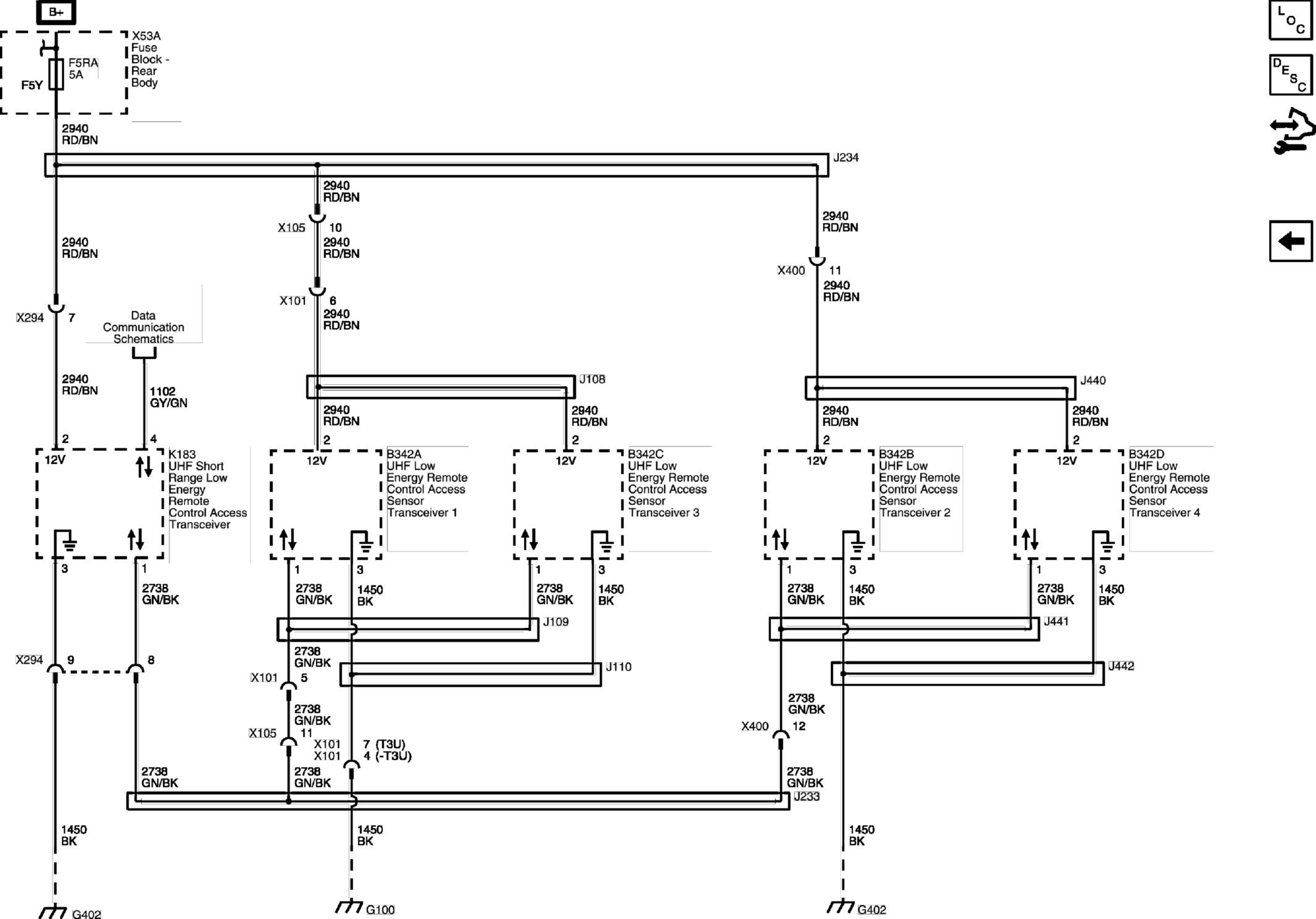

Keyless Entry - Virtual Key (Trax with BOP)

GM5021077

Courtesy of GENERAL MOTORS COMPANY
