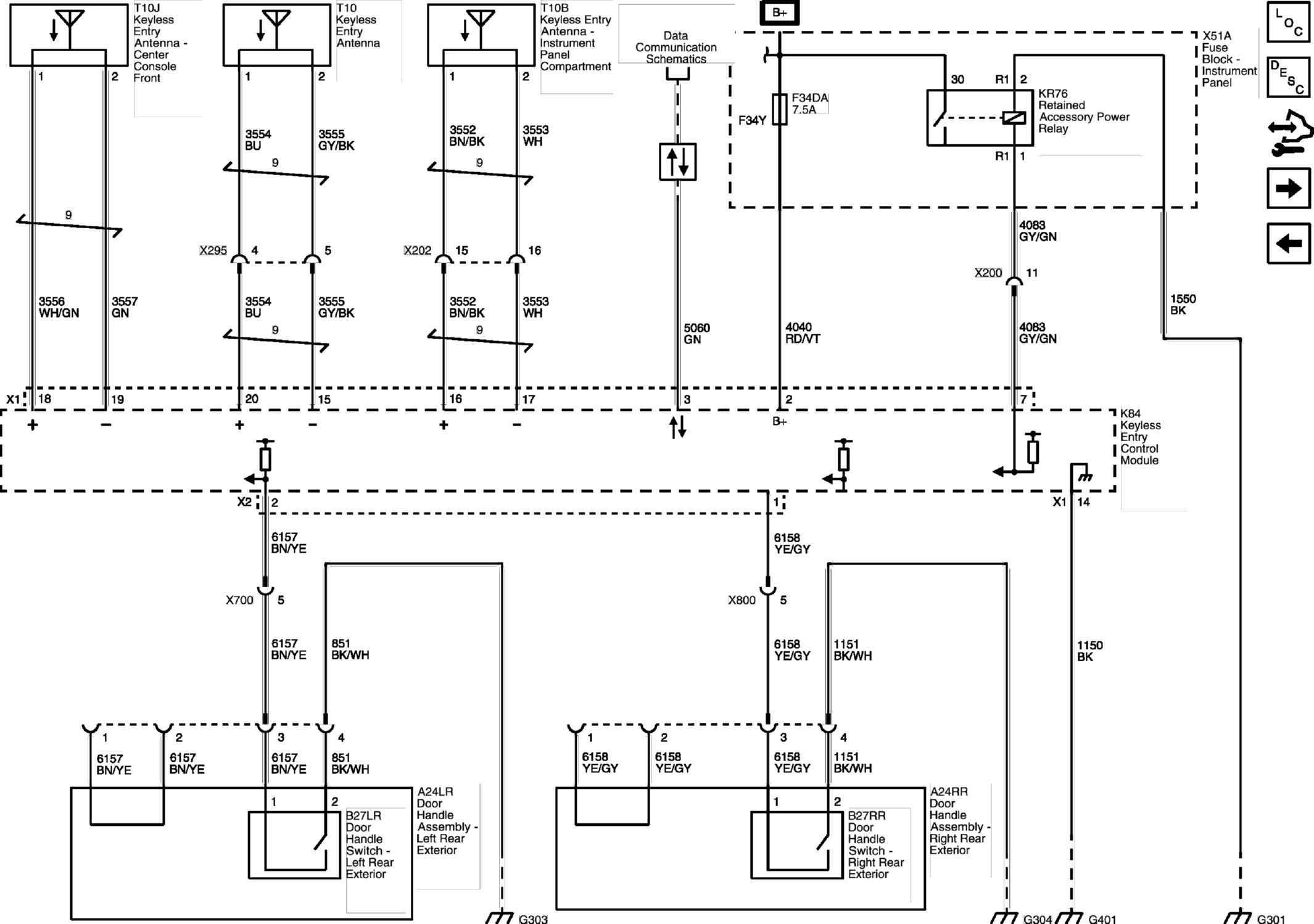

Keyless Entry - Passive Entry and Keyless Start (Trax BTM/ATH) (2 of 2)

GM4919374

Courtesy of GENERAL MOTORS COMPANY
