UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 2

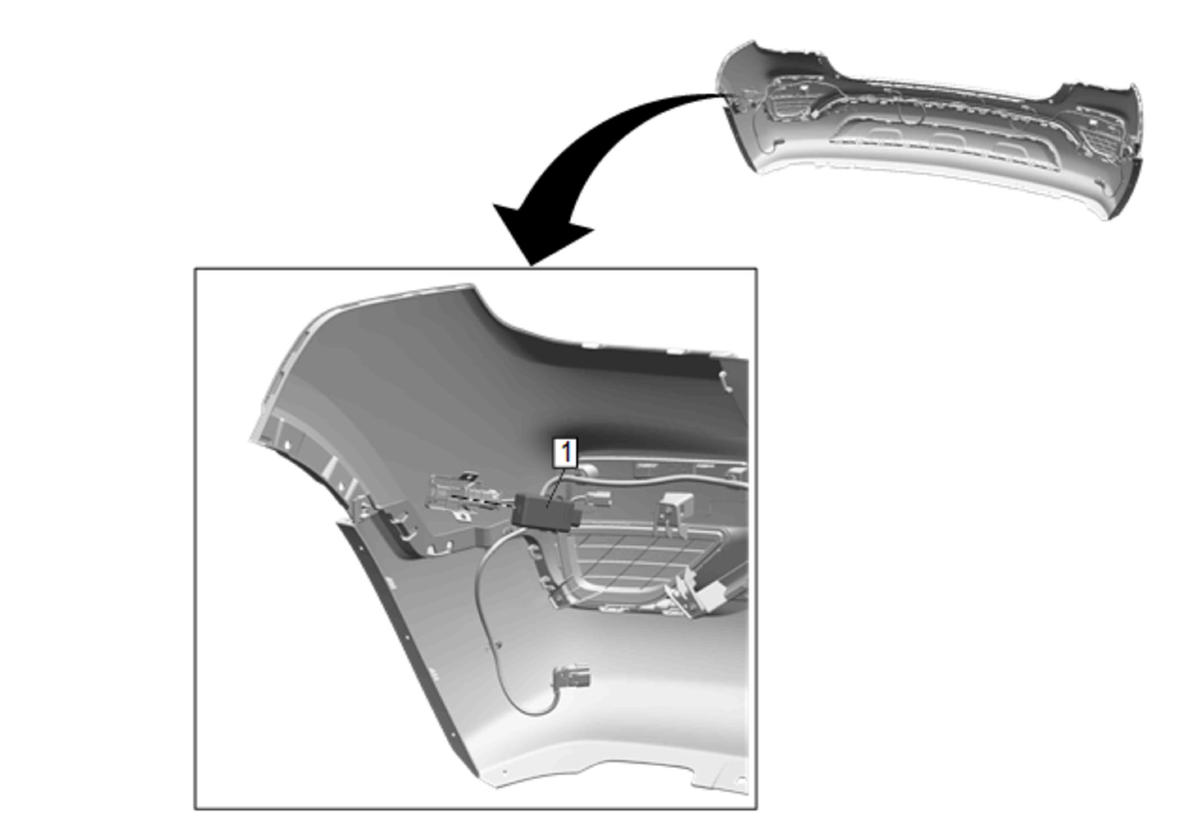

GM5120871Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Replacement (Trax)Rear Bumper Fascia Replacement (Encore)
1 UHF Low Energy Remote Control Access Sensor Transceiver - 2

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
