UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 1

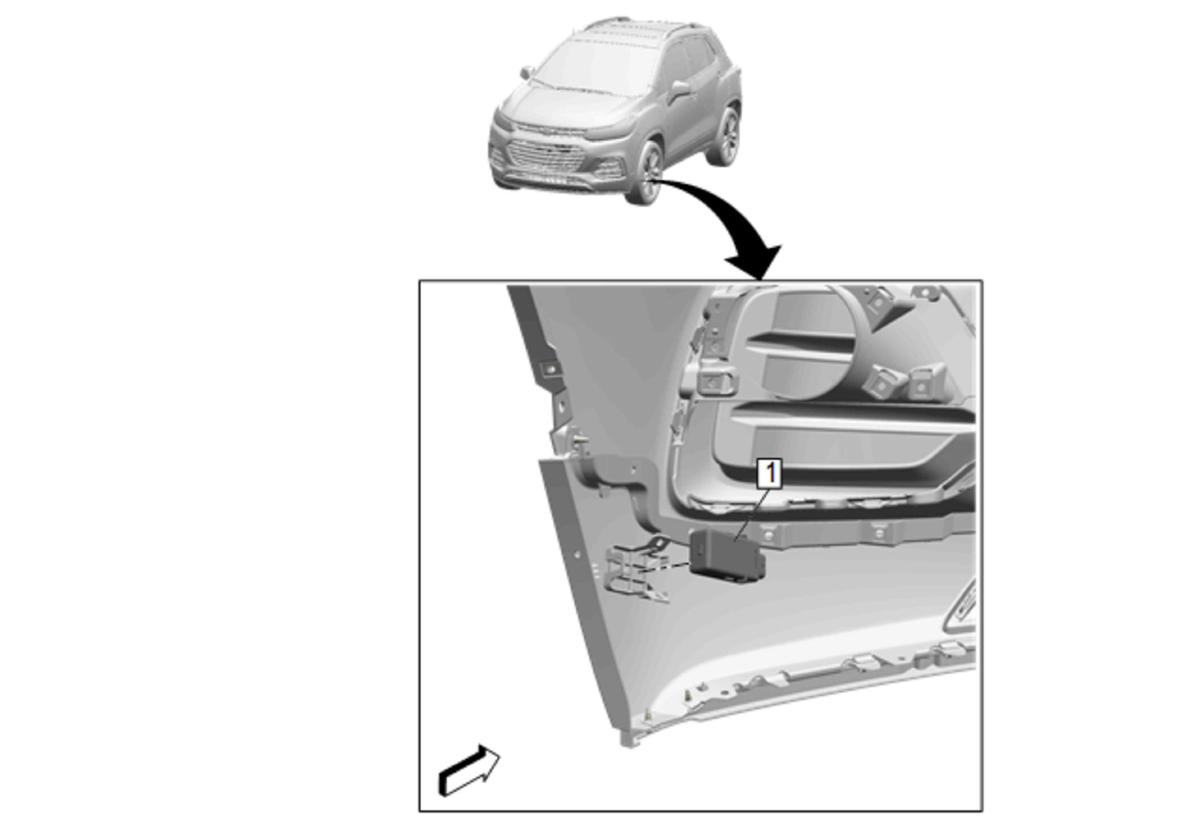

GM5120870Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the left side front wheelhouse liner. Front Wheelhouse Liner Replacement (Trax)Front Wheelhouse Liner Replacement (Encore)
1 UHF Low Energy Remote Control Access Sensor Transceiver - 1

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
