Removal Procedure

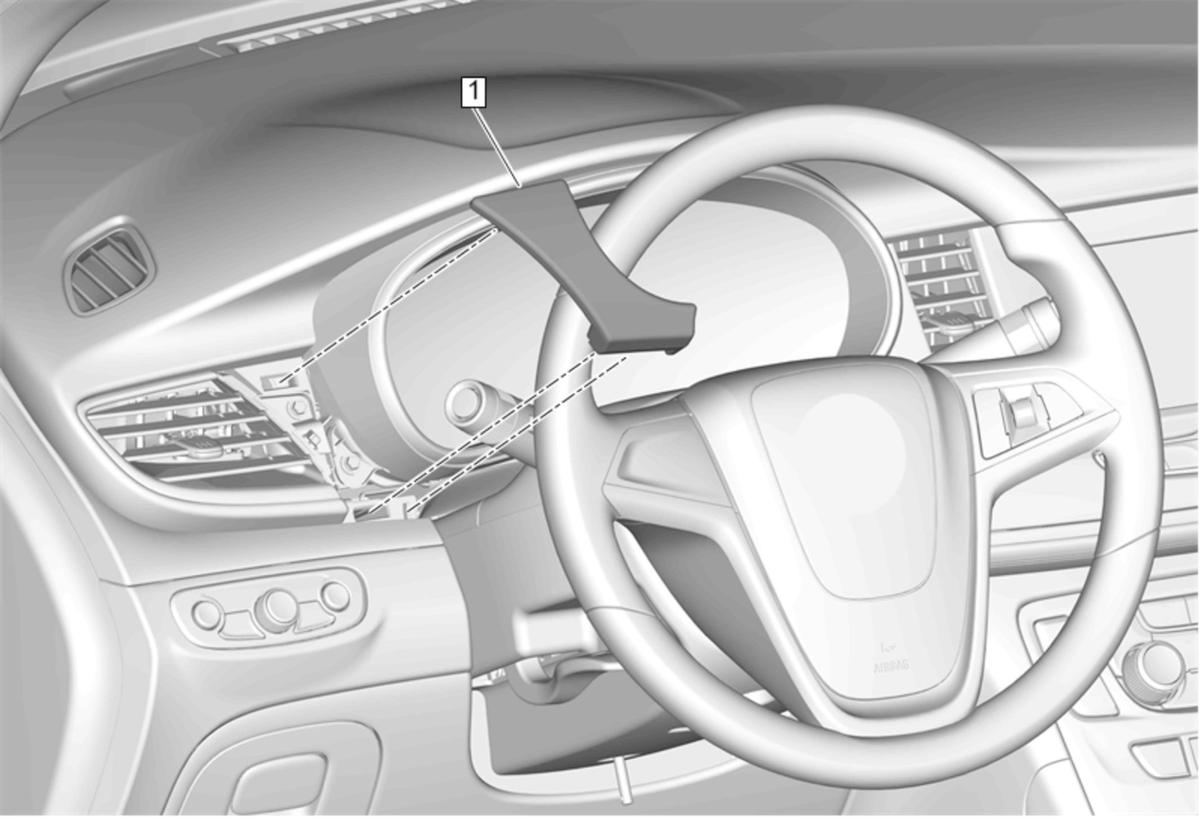

  1. GM4361113Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Plate Applique - Left Side (1) - Remove - Instrument Panel Lower Trim Plate Applique Replacement - Left Side (Encore)

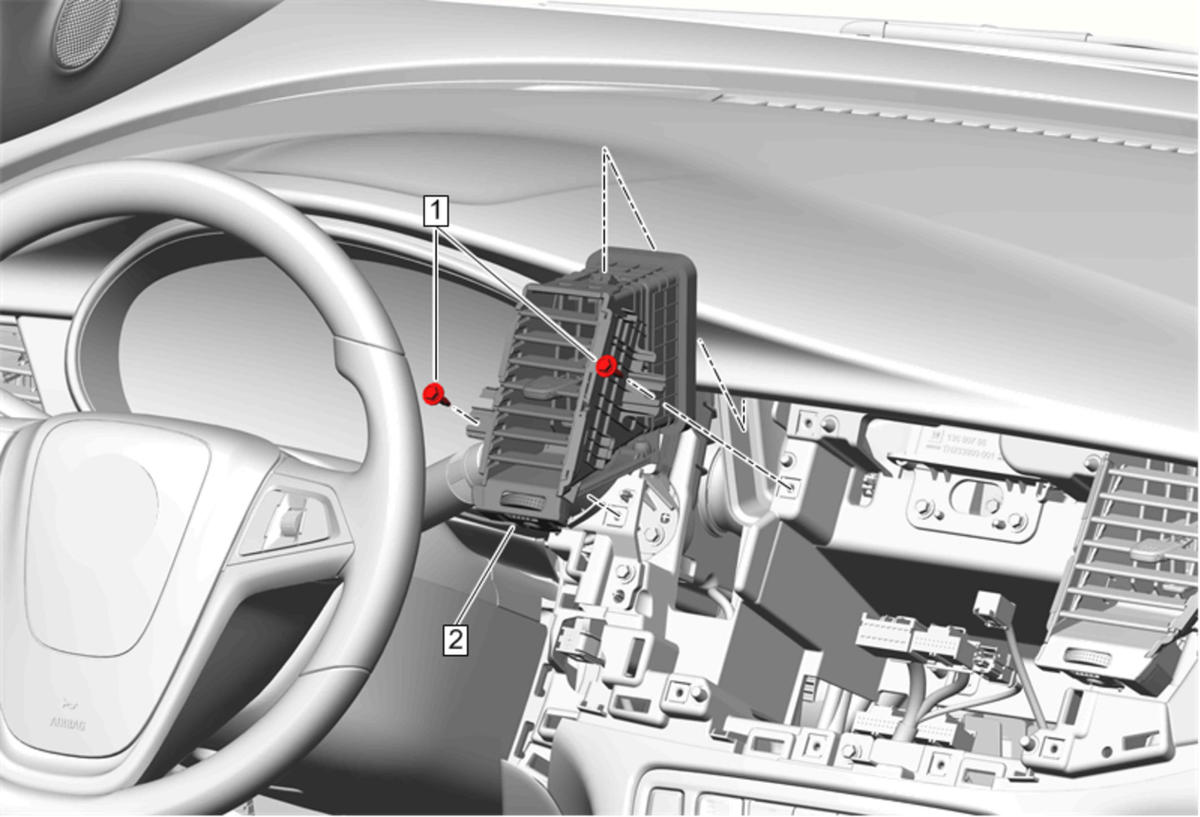

  2. GM4364158Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Left Side (2) - Remove - Instrument Panel Center Air Outlet Replacement - Left Side (Encore)

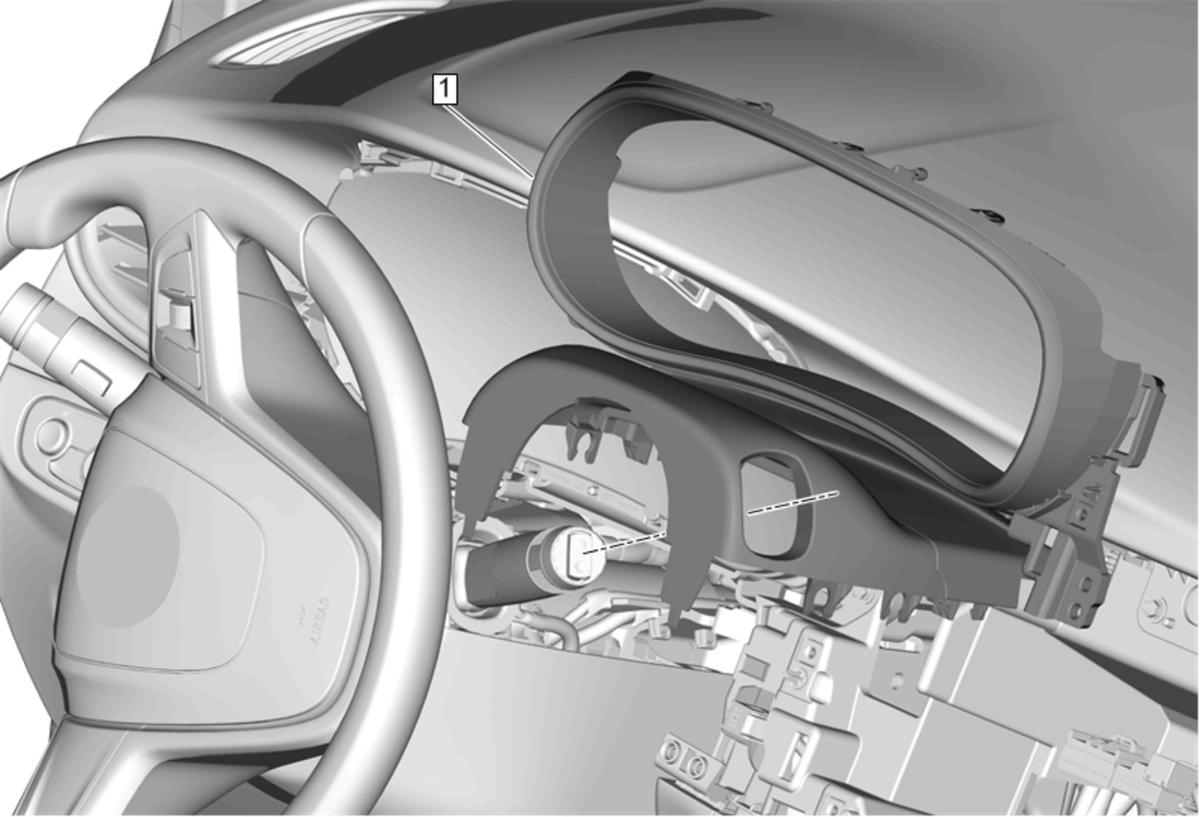

  3. GM4372558Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover (1) - Remove - Steering Column Upper Trim Cover Replacement (Encore, With BTM)

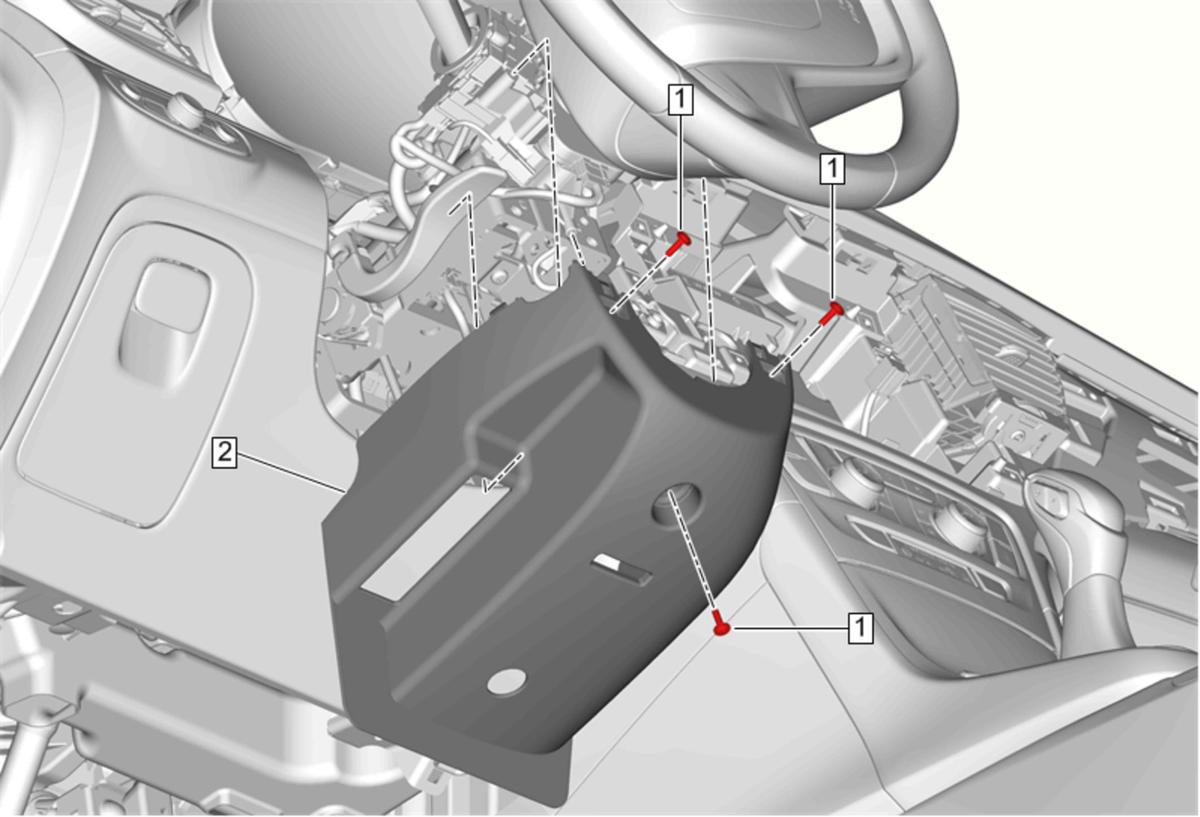

  4. GM4373736Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover Bolt (1) - Remove [3x]

  5. Steering Column Lower Trim Cover (2) - Remove
