Human Machine Interface Control Module Bypass Module Replacement (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Assembly Replacement (Encore)

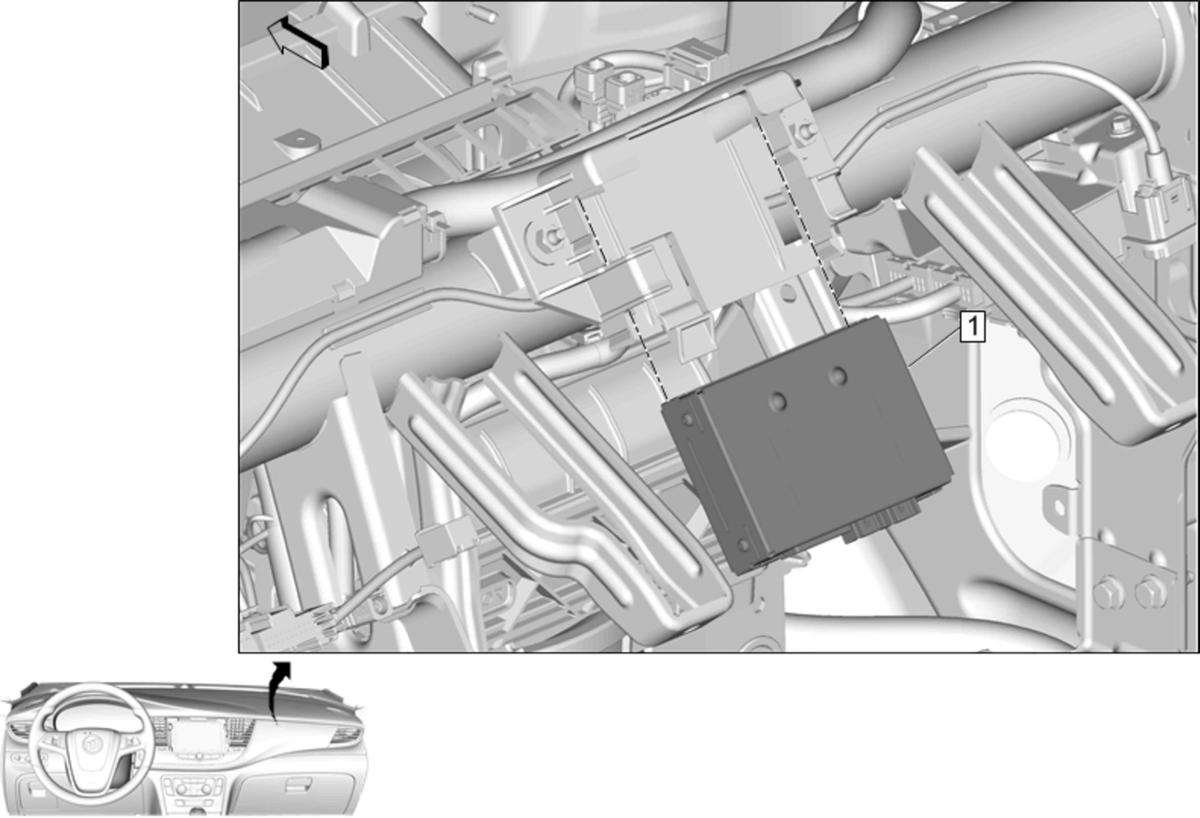

1	Human Machine Interface Control Module Bypass Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Human Machine Interface Control Module Bypass Module

Procedure
