Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

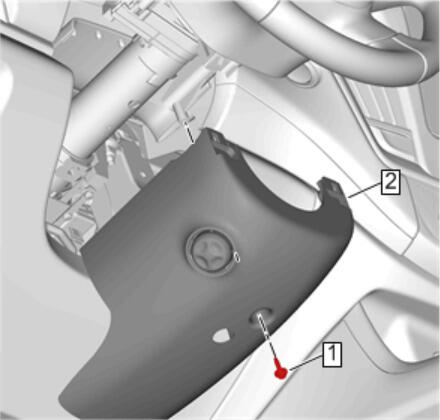

Position the steering column lower trim cover (2) on the steering column.

Connect the electrical connector.

CAUTION:

Steering Column Lower Trim Cover Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Turn the steering wheel approximately 90 degrees to the right of the centered position.
Courtesy of GENERAL MOTORS COMPANY

Steering Column Lower Trim Cover Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

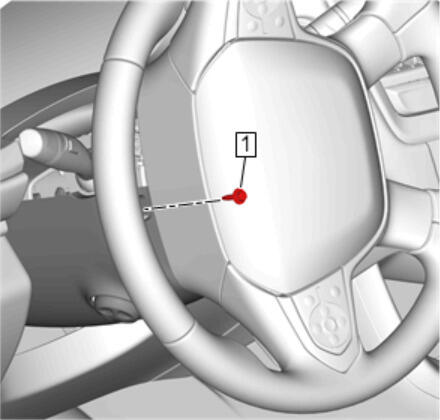

Turn the steering wheel approximately 90 degrees to the left of the centered position.
Courtesy of GENERAL MOTORS COMPANY

Steering Column Lower Trim Cover Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Turn the steering wheel to the centered position.
Courtesy of GENERAL MOTORS COMPANY

Install the steering column upper trim cover (1) to the steering column lower trim cover.
Turn the steering wheel to the centered position.
