Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Steering Column (1) - Install
Fig 1: Steering Column Nuts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Support the steering column while installing the steering column nuts.

Steering Column Nut (1) - Install and hand tighten [4x]

CAUTION:

Refer to Fastener Caution .

Steering Column Nut (1) - Tighten in sequence [4x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the match marks on the upper intermediate steering shaft and steering column are aligned.

Intermediate Steering Shaft (1)@Steering Column - Install - Intermediate Steering Shaft Replacement
Connect the steering column electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
The anti-rotation pin must be removed from the steering column before installing the steering wheel. Ensure that the steering wheel bolt is torqued to specification during steering wheel installation. Over torquing the steering wheel bolt can result in damage to the steering column rivets which will disable the telescoping mechanism. If the steering column rivets are damaged, a new steering column must be installed.

Remove the device used to prevent steering column rotation.
Steering Wheel (2) - Install - Steering Wheel Replacement
Courtesy of GENERAL MOTORS COMPANY

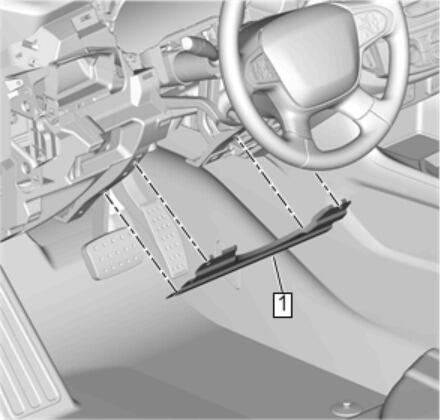

Floor Front Air Outlet Duct - Left Side (1) - Install - Floor Front Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

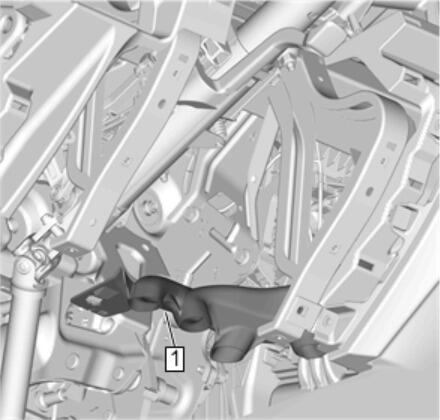

Instrument Panel Knee Bolster Bracket (1) - Install - Instrument Panel Knee Bolster Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

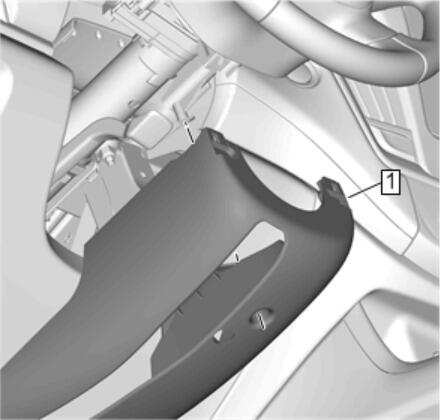

Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement (N37)
Enable the SIR System. SIR Disabling and Enabling
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
Perform functionality check of tilt and telescoping features.
