Installation Procedure

  1. GM4751146Courtesy of GENERAL MOTORS COMPANY

    Position the intermediate steering shaft (1) in the vehicle.

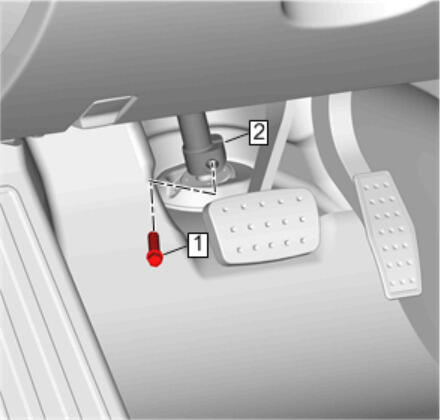

  2. GM4751145Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft (2)@Steering Gear - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Intermediate Steering Shaft Lower Bolt (1) - Install and tighten 55 N.m (41 lb ft)
    1. Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
    2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

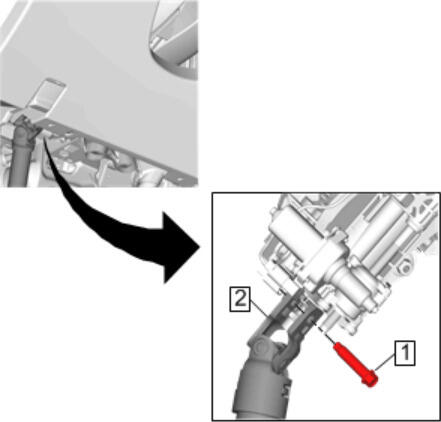

  4. GM4751144Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft (2)@Steering Column - Install

  5. Intermediate Steering Shaft Upper Bolt (1) - Install and tighten 42 N.m (31 lb ft)
    1. Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
    2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers
  6. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
