Rear Body Fuse Block Replacement

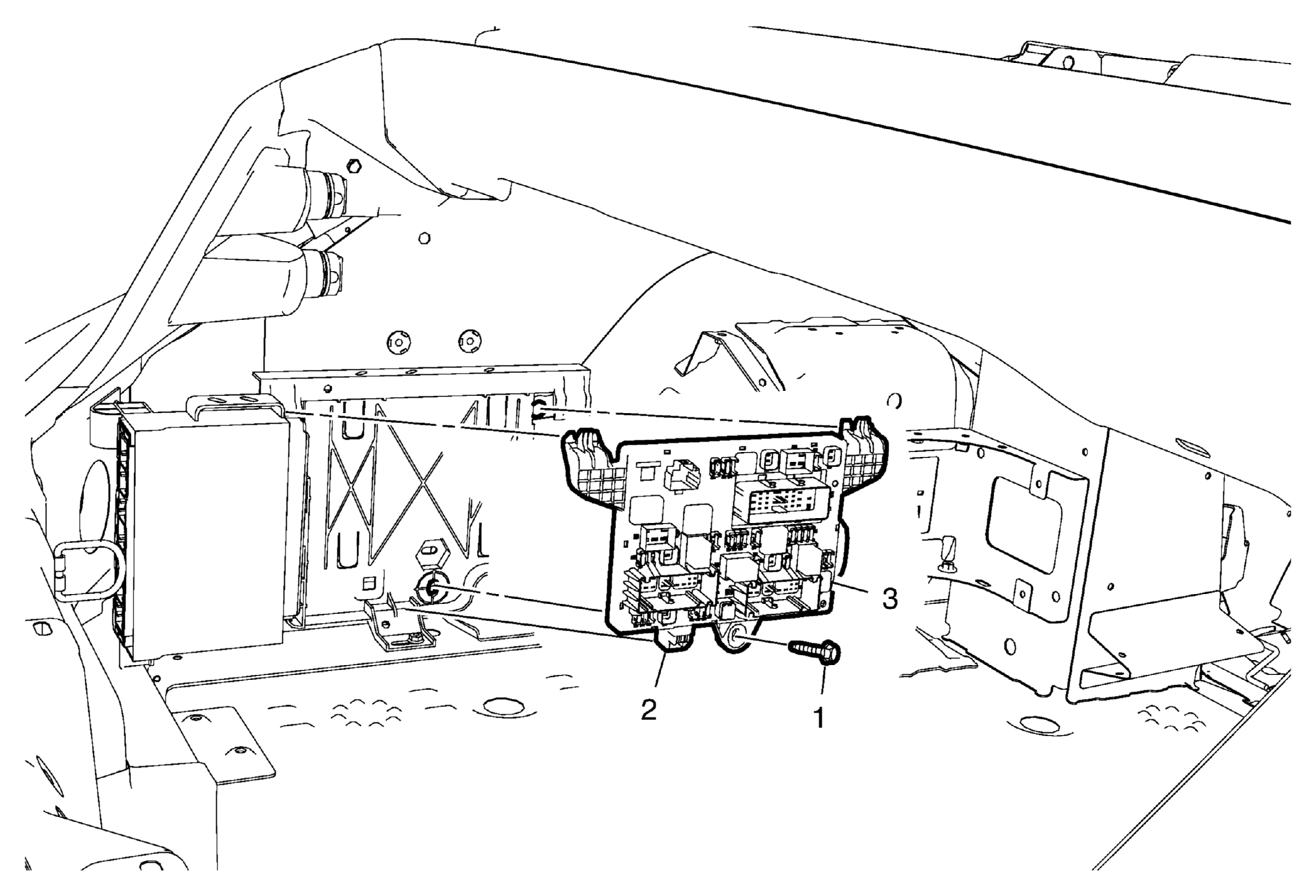

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement - Left Side . |
|
| 1 | Rear Body Fuse Block Bolt
CAUTION:
Refer to Fastener Caution . |
| 2 | Rear Body Fuse Block Retainer Procedure Press to unlock |
| 3 | Rear Body Fuse Block |
