Installation Procedure

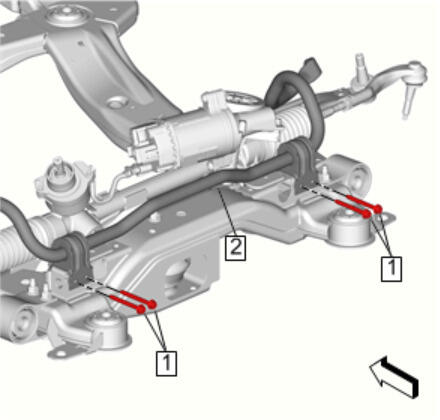

  1. GM4217716Courtesy of GENERAL MOTORS COMPANY

    Front Stabilizer Shaft(1)@Drivetrain and Front Suspension Cradle - - Install

    2. CAUTION:

    Fastener Caution

  2. Front Stabilizer Shaft Insulator Clamp Bolt(1) - Install and tighten[4x] 22 N.m (16 lb ft)

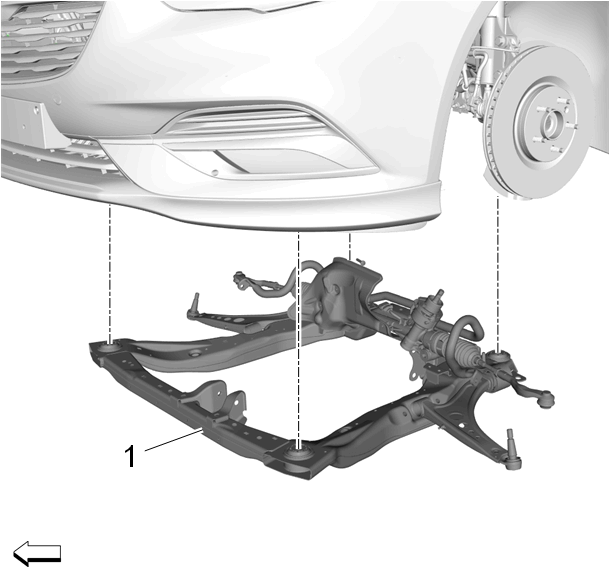

  3. GM4725815Courtesy of GENERAL MOTORS COMPANY

    Drivetrain and Front Suspension Cradle(1) - Install - Drivetrain and Front Suspension Cradle Replacement (LGX)Drivetrain and Front Suspension Cradle Replacement (LTG)
