Airbag Side Impact Sensor Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: SIR Warning WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedures SIR Disabling and Enabling Front Side Door Trim Replacement Front Side Door Water Deflector Replacement

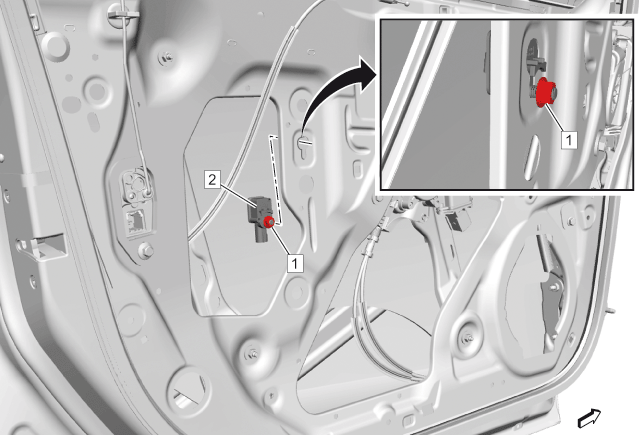

1	Airbag Side Impact Sensor Nut CAUTION: Fastener Caution Tighten 7.5 N.m (66 lb in)
2	Airbag Side Impact Sensor Procedure Disconnect the electrical connector. Loosen the fastener and slide the sensor out of the keyhole slot. NOTE: The sensor is located on the inside of the front door inner panel. NOTE: The fastener is integral to the sensor assembly, DO NOT remove separately.

Callout

Component Name

WARNING:

SIR Warning

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

The seat cushion frame
The seat recliner, if equipped
The seat adjuster
The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedures

SIR Disabling and Enabling
Front Side Door Trim Replacement
Front Side Door Water Deflector Replacement

Airbag Side Impact Sensor Nut

CAUTION:

Fastener Caution

Tighten
7.5 N.m (66 lb in)

Airbag Side Impact Sensor

Procedure

Disconnect the electrical connector.
Loosen the fastener and slide the sensor out of the keyhole slot.

NOTE:

The sensor is located on the inside of the front door inner panel.

NOTE:

The fastener is integral to the sensor assembly, DO NOT remove separately.
