Front Side Door Window Regulator Replacement

Courtesy of GENERAL MOTORS COMPANY

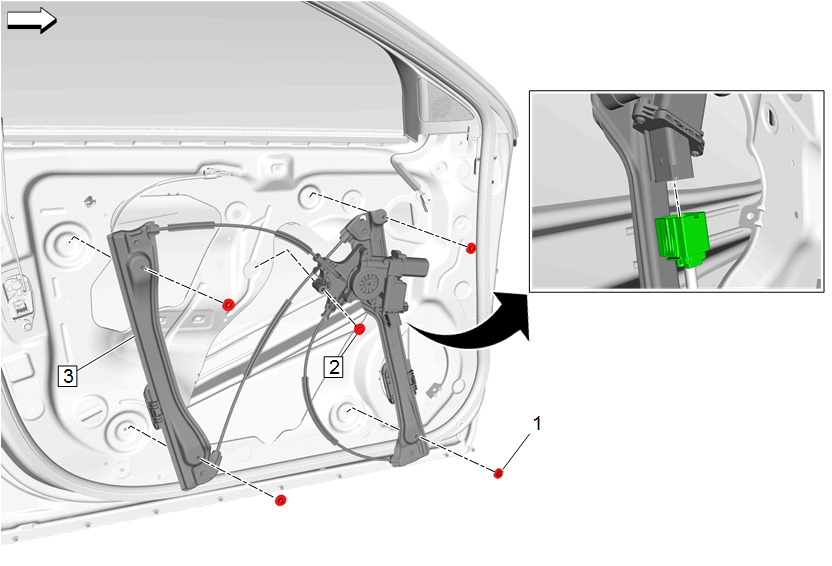

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Place the front side door window in middle position. Front Side Door Water Deflector Replacement Secure the window before releasing the window from the sash retainers.
1	Front Side Door Window Regulator Nut [4x] CAUTION: Fastener Caution Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Bolt Tighten 11 N.m (97 lb in)
3	Front Side Door Window Regulator Procedure Disconnect the electrical connector. Transfer components as necessary. NOTE: Inspect the window for proper operation before installing the door trim.
