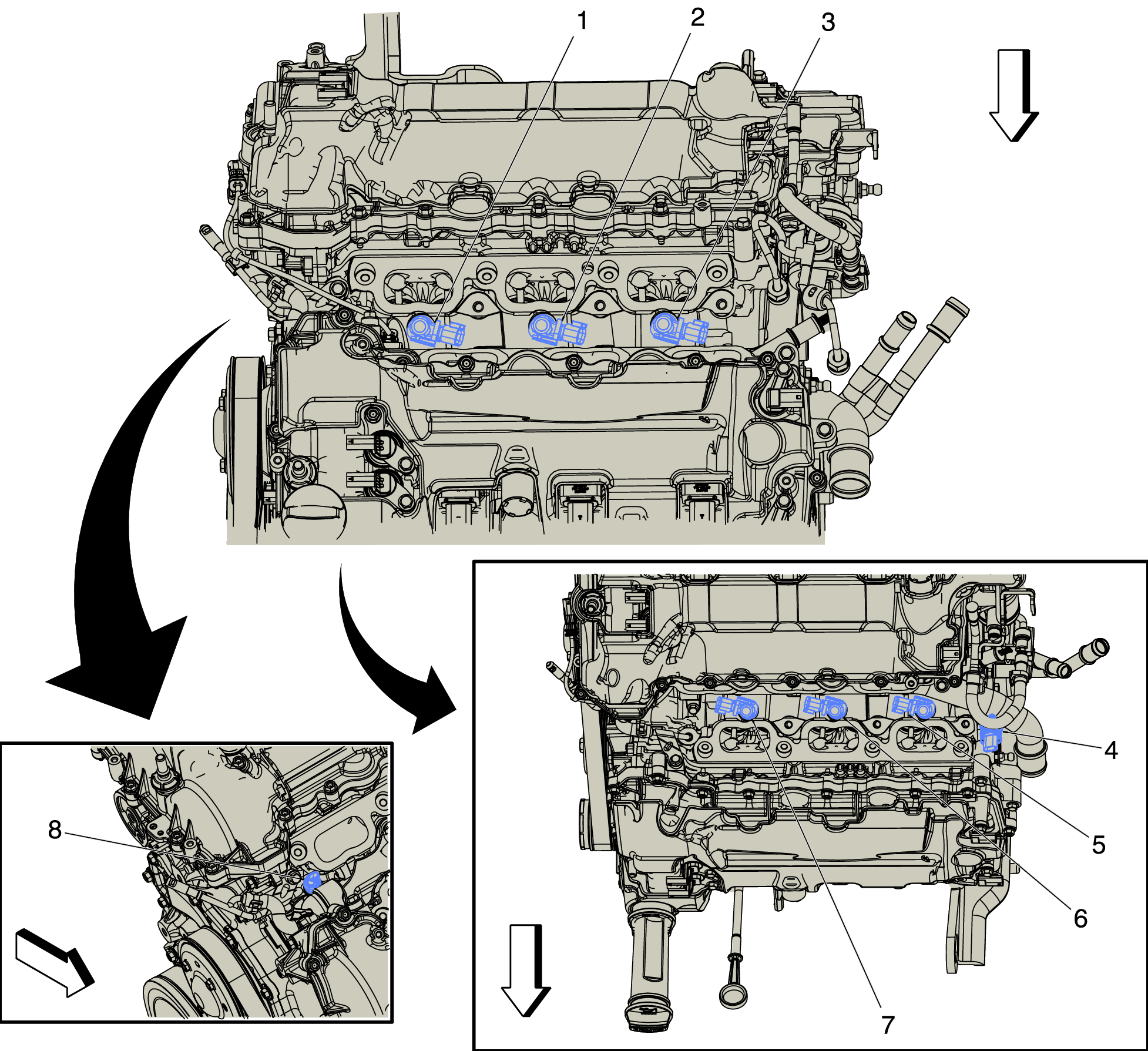

Engine Components - Top (LGX)
Engine Components - Top (LGX)
| Items |
|---|
| 1 Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LGX)Q17A Fuel Injector 1 (LTG) |
| 2 Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LGX)Q17C Fuel Injector 3 (LTG) |
| 3 Q17E Fuel Injector 5 (LGX) Q17E Fuel Injector 5 (LGX) |
| 4 B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor (LGX)B310 Fuel Pressure/Temperature Sensor (LTG) |
| 5 Q17F Fuel Injector 6 (LGX) Q17F Fuel Injector 6 (LGX) |
| 6 Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LGX)Q17D Fuel Injector 4 (LTG) |
| 7 Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LGX)Q17B Fuel Injector 2 (LTG) |
| 8 B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LTG)B34 Engine Coolant Temperature Sensor (LGX) |
