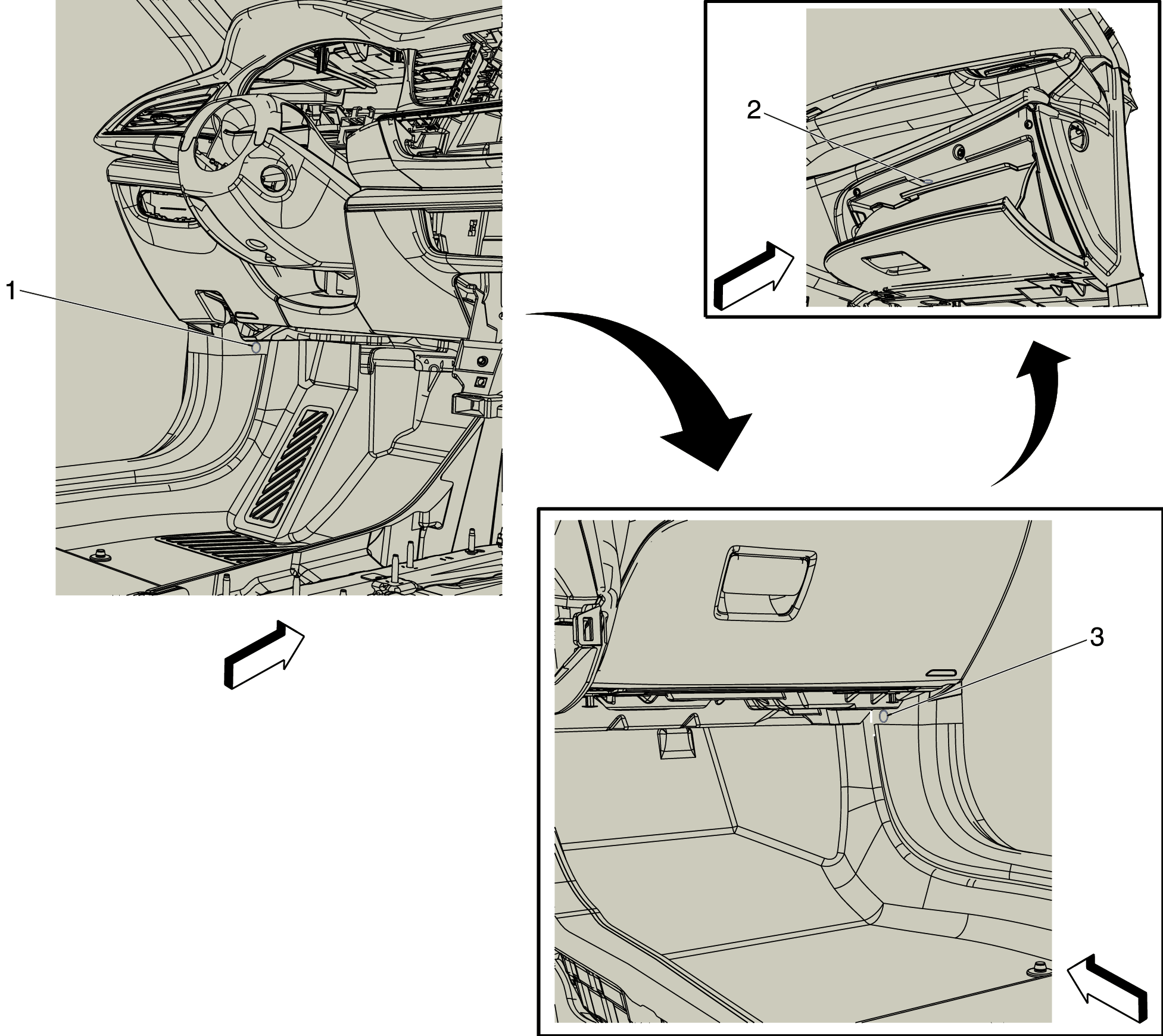

Instrument Panel Footwell and Compartment Lighting Components

GM4623686
Instrument Panel Footwell and Compartment Lighting Components

Items
1 E1AA Floor Accent Lamp - Left Front (C93) E1AA Floor Accent Lamp - Left Front (C93)
2 E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
3 E1AB Floor Accent Lamp - Right Front (C93) E1AB Floor Accent Lamp - Right Front (C93)
