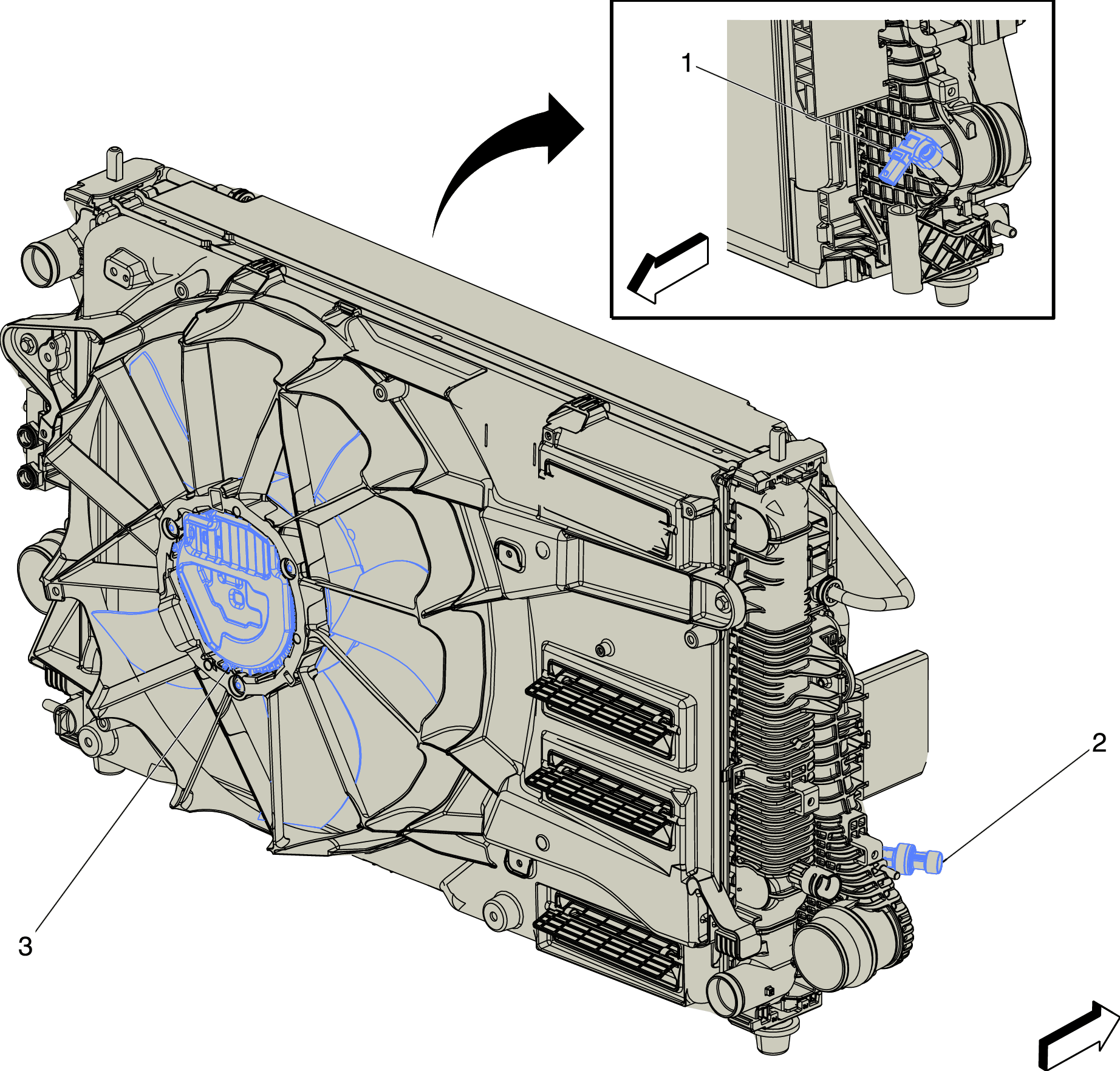

Single Cooling Fan Components (LTG)

GM4623668
Single Cooling Fan Components (LTG)

Items
1 B111B Turbocharger Boost/Intake Air Temperature Sensor (LTG) B111B Turbocharger Boost/Intake Air Temperature Sensor (LTG)
2 B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
3 G10 Cooling Fan Motor (LTG) G10 Cooling Fan Motor (LTG)
