K9 Body Control Module X3
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

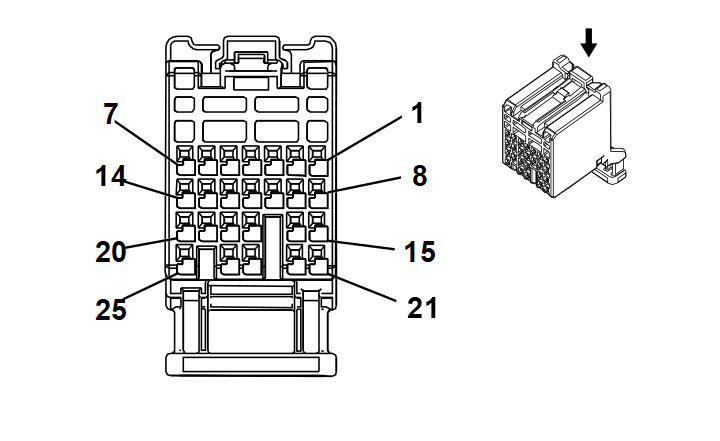

Connector Part Information
- Harness Type: Steering Column
- OEM Connector: HATTPB-25-3C-LM
- Service Connector: Service by Harness - See Part Catalog
- Description: 25-Way F 0.64 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GN/GY |
3277 |
Immobilizer Control Module Low Reference |
I |
- |
| 2 |
- |
GN/VT |
7533 |
Immobilizer LIN Bus 1 |
I |
- |
| 3 |
- |
GY/BK |
3276 |
Immobilizer Control Module Supply |
I |
- |
| 4 |
- |
WH/RD |
1444 |
Steering Wheel Controls 12 Volt Reference |
I |
- |
| 5 |
- |
VT/YE |
4 |
Accessory Voltage |
I |
- |
| 6 |
- |
VT/BK |
3 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
- |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 10 |
- |
BK/GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 11 |
- |
WH |
524 |
High Beam Select Switch High Beam Signal |
I |
- |
| 12 |
- |
WH/GN |
663 |
Hazard Warning Switch Left Turn Signal |
I |
- |
| 13 |
- |
YE/BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
| 14 |
- |
BU/GY |
553 |
Shift Select Switch Performance Signal |
I |
- |
| 15 |
- |
WH/VT |
1020 |
Off/Run/Crank Ignition Voltage 2 |
I |
- |
| 16 |
- |
GY/GN |
5737 |
Distance Sensing Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 17 |
- |
YE/BN |
307 |
Headlamp Switch Flash Signal |
I |
- |
| 18 |
- |
GN/WH |
3287 |
Horn Switch Signal |
I |
- |
| 19 |
- |
OG |
7527 |
Human Machine Interface Control Module LIN Bus 1 |
I |
- |
| 20 |
- |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 21 |
- |
VT/YE |
5526 |
Tap Up/Down Switch Signal |
I |
- |
| 22 |
- |
WH/BK |
1073 |
Ignition Key Resistor Signal |
I |
- |
| 23 |
- |
GY/YE |
7595 |
Auto Wiper On Signal |
I |
- |
| 24 |
- |
VT/BU |
664 |
Hazard Warning Switch Right Turn Signal |
I |
- |
| 25 |
- |
WH/BK |
94 |
Windshield Washer Switch Signal |
I |
- |
