Installation Procedure

  1. GM4629278Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Instrument Cluster (2) - Install

  2. Connect the electrical connector. (3)
  3. Instrument Cluster Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

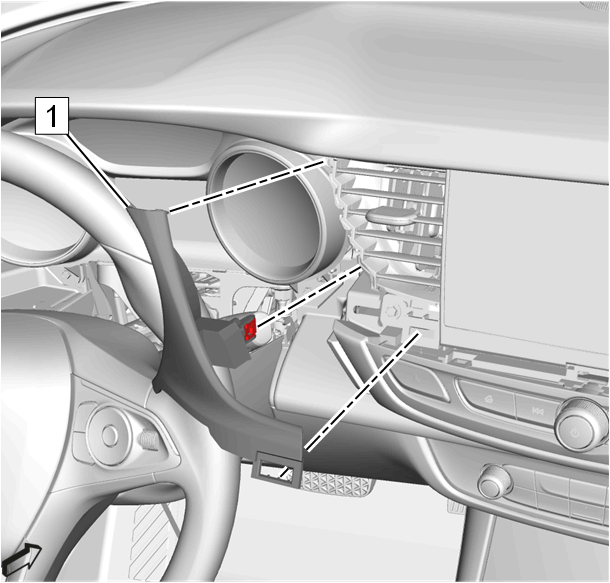

  4. GM4629276Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel center air outlet bezel (1).

  5. Instrument Panel Center Trim Plate Applique Replacement - Install
  6. Steering Column Upper Trim Cover Replacement - Install
  7. BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG) - Connect
  8. Control Module References - Programming and Setup
