Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

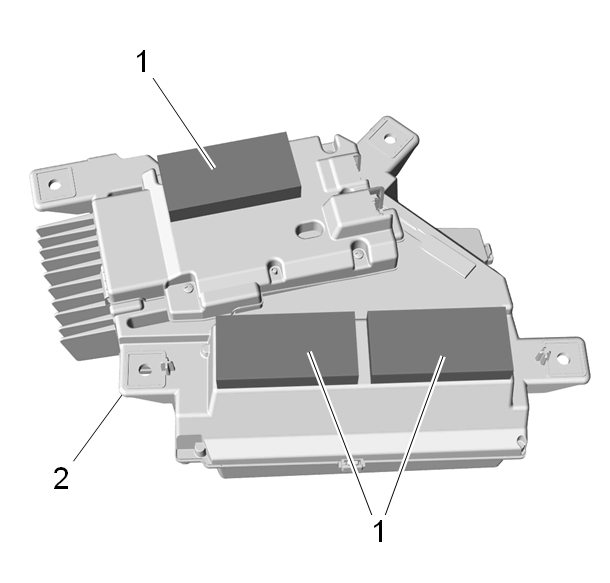

Install 3 new foam pads (1) to the head-up display (2) as shown in the graphic.
Courtesy of GENERAL MOTORS COMPANY

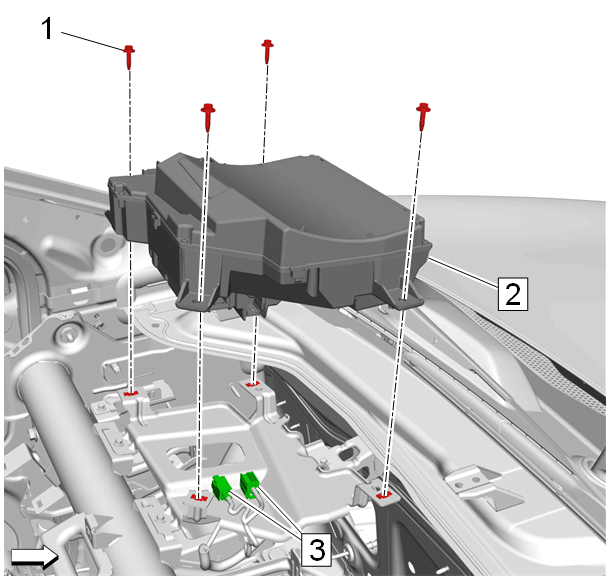

Head-Up Display (2) - Install
Electrical Connector (3) Connect [2x]
Head-Up Display Bolt (1) - Install, but do NOT tighten [4x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

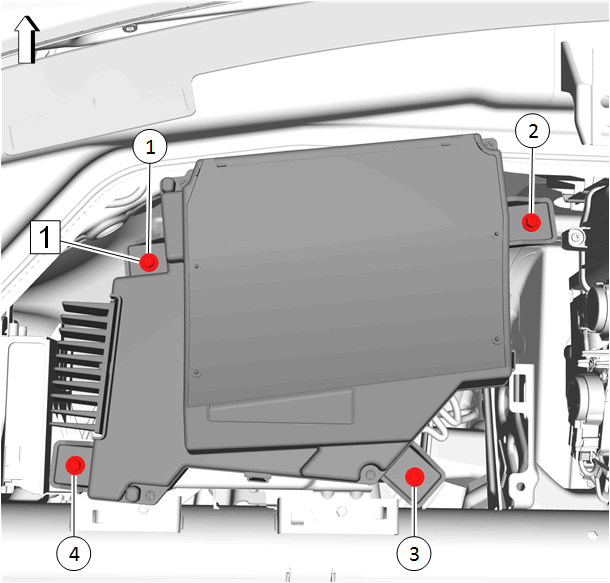

Head-Up Display Bolt (1) - Tighten in sequence [4x] 2.5 N.m (22 lb in)
Instrument Panel Assembly - Install - Instrument Panel Assembly Replacement
Battery Negative Cable - Connect - BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
Head-Up Display - Programming and Setup - Control Module References
