Outside Rearview Mirror Replacement

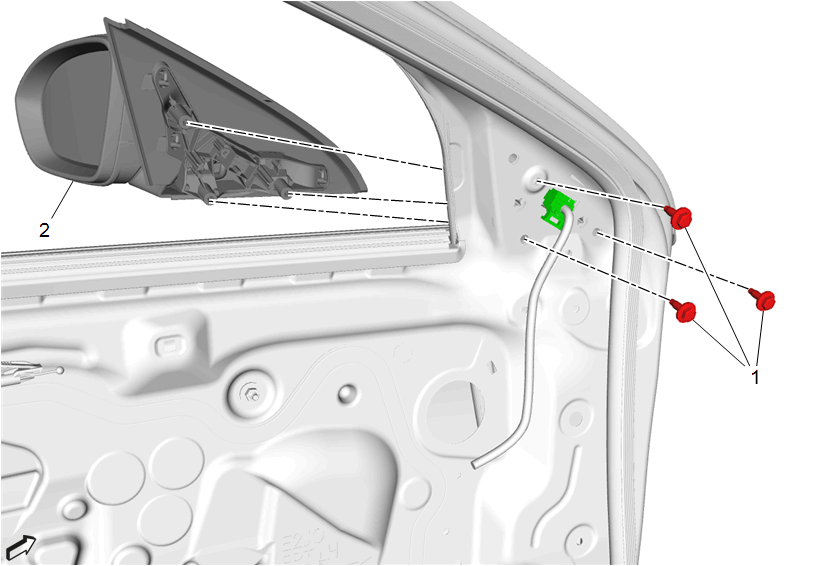

Callout	Component Name
Preliminary Procedures Front Side Door Window Garnish Molding Replacement
1	Outside Rearview Mirror Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure Disconnect the electrical connector. Unlock the retaining tabs. {If equipped} Side View Driver Information Camera - Programming and Setup - Control Module References

Callout

Component Name

Outside Rearview Mirror Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Outside Rearview Mirror

Procedure

Disconnect the electrical connector.
Unlock the retaining tabs.
{If equipped} Side View Driver Information Camera - Programming and Setup - Control Module References
