Front Floor Console Armrest Replacement

Courtesy of GENERAL MOTORS COMPANY

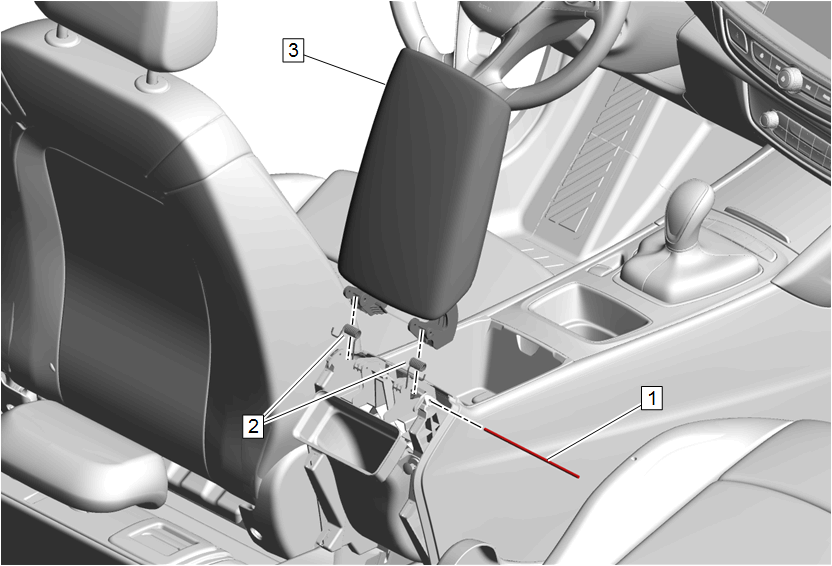

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Armrest Pivot Pin
2	Front Floor Console Armrest Spring [2x]
3	Front Floor Console Armrest
