K9 Body Control Module X6

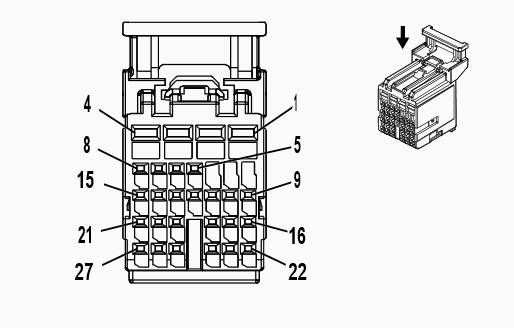

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582297	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	13582326	J-35616-35 (VT)	J-38125-553	8100-4444	Sumitomo 22	2	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	GY	5911	Door Lock Actuator Lock Control 2	II	-
2	1	GY	295	Door Lock Actuator Lock Control	II	-
3	1	BK	2050	Ground	II	-
4	1	BN/YE	294	Door Lock Actuator Unlock Control	II	-
5	0.35	VT/WH	1303	Lift Gate Ajar Switch Signal 1	I	-
6	0.35	BN/WH	781	Driver Door Lock Switch Unlock Signal	I	-
7	-	-	-	Not Occupied	-	-
8	0.5	BN/BU	2723	Outside Rear View Mirror Fold Control Signal	I	-
9	0.35 0.5	GN/BU GN/BU	6133 6133	Local Interconnect Network Serial Data Bus 2 Local Interconnect Network Serial Data Bus 2	I I	KA1 -KA1
10	0.35	GN/YE	6134	Local Interconnect Network Serial Data Bus 3	I	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.35	VT/BK	6568	Front Turn Lamp Feedback Signal	I	-
14	0.35	WH/YE	7545	Right Front Turn Lamp Feedback Signal	I	-
15	0.35	YE/BU	5797	Rear Closure Handle Switch Open Signal	I	-
16	0.35 0.5	GN/BN GN/BN	6132 6132	Local Interconnect Network Serial Data Bus 1 Local Interconnect Network Serial Data Bus 1	I I	C3U CF5/(-UTU-UTV)
17	0.35	GN	649	Heated Windshield Indicator Control	I	-
18	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
19	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
20 - 21	-	-	-	Not Occupied	-	-
22	0.35	GY	5054	Sport Mode Switch Signal	I	-
23	-	-	-	Not Occupied	-	-
24	0.35 0.5	BU BU	2500 2500	High Speed GMLAN Serial Data (+) 1 High Speed GMLAN Serial Data (+) 1	I I	UGN UV6
25	0.35 0.5	WH WH	2501 2501	High Speed GMLAN Serial Data (-) 1 High Speed GMLAN Serial Data (-) 1	I I	UGN UV6
26 - 27	-	-	-	Not Occupied	-	-
