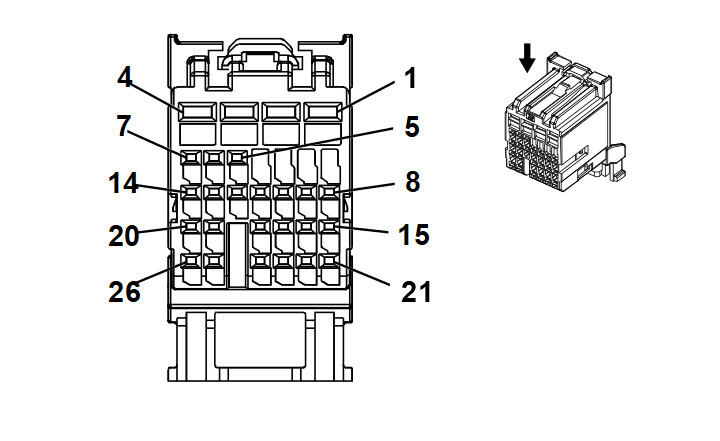

K9 Body Control Module X1

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582297	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	13582326	J-35616-35 (VT)	J-38125-553	8100-4444	Sumitomo 22	2	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1	BK/WH	1651	Signal Ground	II	-
2	1	RD/BU	4540	Battery Positive Voltage	II	-
3	1	RD/GN	4440	Battery Positive Voltage	II	-
4	0.75	RD/YE	4340	Battery Positive Voltage	II	-
5	0.35	WH	6816	Indicator Dimming Control	I	-
6	0.35	GY/YE	6188	Lift Glass/Rear Compartment Lid Motor Release Control	I	-
7	0.13	BK	5005	Instrument Panel Lamp Dimmer Switch Low Reference	I	-
8	0.13	BN	5720	Ignition Mode Switch Accessory LED Signal	I	-
9	-	-	-	Not Occupied	-	-
10	0.35	GN	4512	Wireless Charging System Charge Indicator Control	I	-
11	0.13	GN	306	Headlamp Switch Headlamps Off Signal Control	I	-
12	0.35	BU	1111	Auto Stop Start Switch Signal	I	-
13	0.13	BU	1688	5V Reference	I	-
14	0.35	BN/BU	648	Heated Windshield Switch Signal	I	-
15	0.35	WH/VT	5905	Key Capture/Column Lock Shift Position Signal	I	-
16	0.13	WH	103	Headlamp Switch On Signal	I	-
17	0.35	GY	7543	Hazard LED Dimming Signal	I	-
18	-	-	-	Not Occupied	-	-
19	0.35	BK/BN	5360	Brake Apply Sensor Low Reference	I	-
20	0.13	BU	5719	Ignition Mode Switch Start LED Signal	I	-
21	0.13	GY	728	Security Indicator Control	I	-
22	0.13	GY	13	Headlamp Switch Park Lamp Signal	I	-
23	0.35	VT/GN	7558	LED Ambient Lighting Control 2	I	-
24	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
25	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
26	0.13	BU	3275	Remote Function Actuator Receive Signal	I	-
