Electrical Components / Fuse Blocks

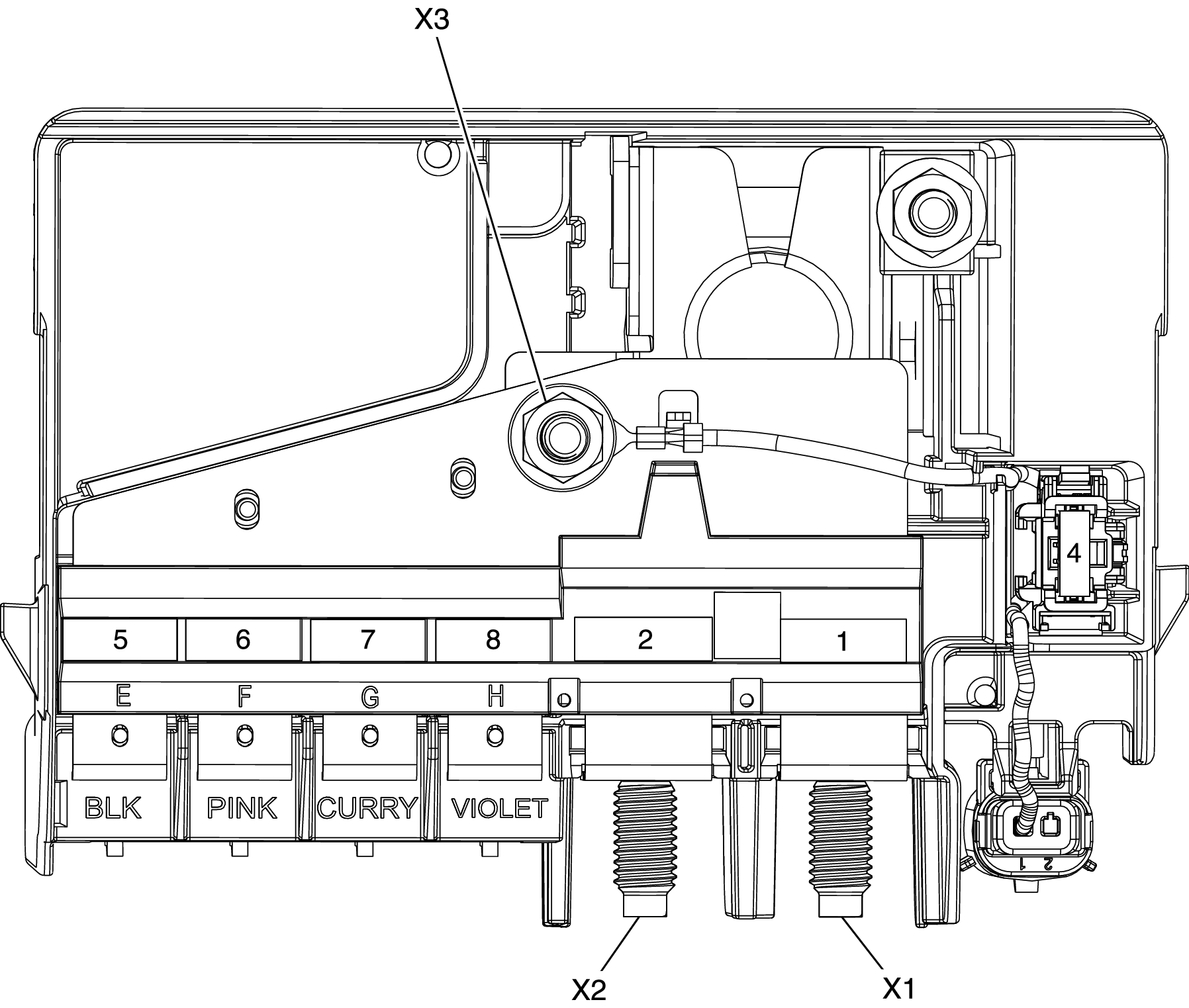

GM4161987
X50D Fuse Block - Battery Usage

No. Device Label Name Device Assigned Name Rating Description
1 - F1BA 600A
  • X50A Fuse Block - Underhood
2 - F2BA 100A
  • K43 Power Steering Control Module
3 - F4BA 5A
  • B110 Battery Sensor Module
5 - F5BA 40A
  • T19 Power Supply Transformer
6 - F6BA 40A
  • T19 Power Supply Transformer
7 - F7BA 100A
  • X51A Fuse Block - Instrument Panel
8 - F8BA 100A
  • X51A Fuse Block - Instrument Panel
GM4161987
X50D Fuse Block - Battery Usage

No. Device Label Name Device Assigned Name Rating Description
1 - F1BA 500A
  • M64 Starter Motor, G13 Generator
2 - F2BA 350A
  • X50A Fuse Block - Underhood
4 - F4BA 5A
  • B110 Battery Sensor Module
5 - F5BA 50A
  • G10 Cooling Fan Motor
6 - F6BA 100A
  • X53A Fuse Block - Rear Body
7 - F7BA 100A
  • X51A Fuse Block - Instrument Panel
8 - F8BA 100A
  • X51A Fuse Block - Instrument Panel
