Front Lower Control Arm Rear Bushing Replacement

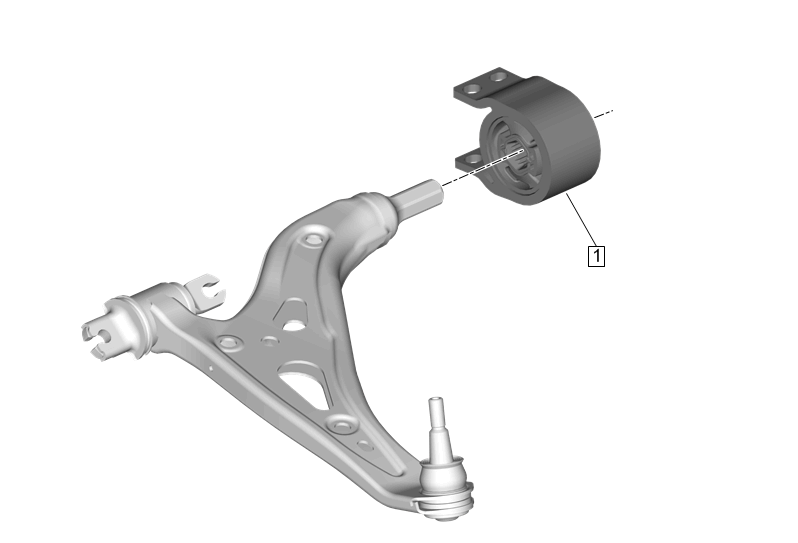

GM4584045

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Lower Control Arm Replacement (GNB) Lower Control Arm Replacement (GNA)

1

Front Lower Control Arm Rear Bushing

Procedure

Place match marks on the front lower control arm and front lower control arm rear bushing to aid in installation.
Secure the front lower control arm in a vise and use a suitable puller to remove the front lower control arm rear bushing.
Copy any match marks to aid in installation, if necessary.
