Windshield Defroster Outlet Duct Replacement

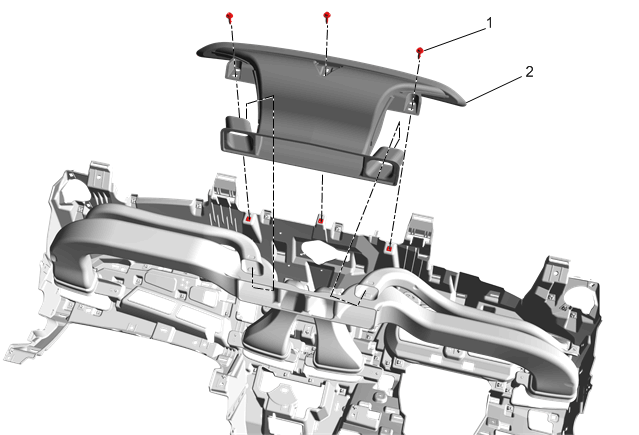

GM3914245Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
Preliminary Procedure
Instrument Carrier Replacement
1 Windshield Defroster Outlet Duct Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten 2.5 N.m (22 lb in)
2 Windshield Defroster Outlet Duct
