Blower Motor Replacement

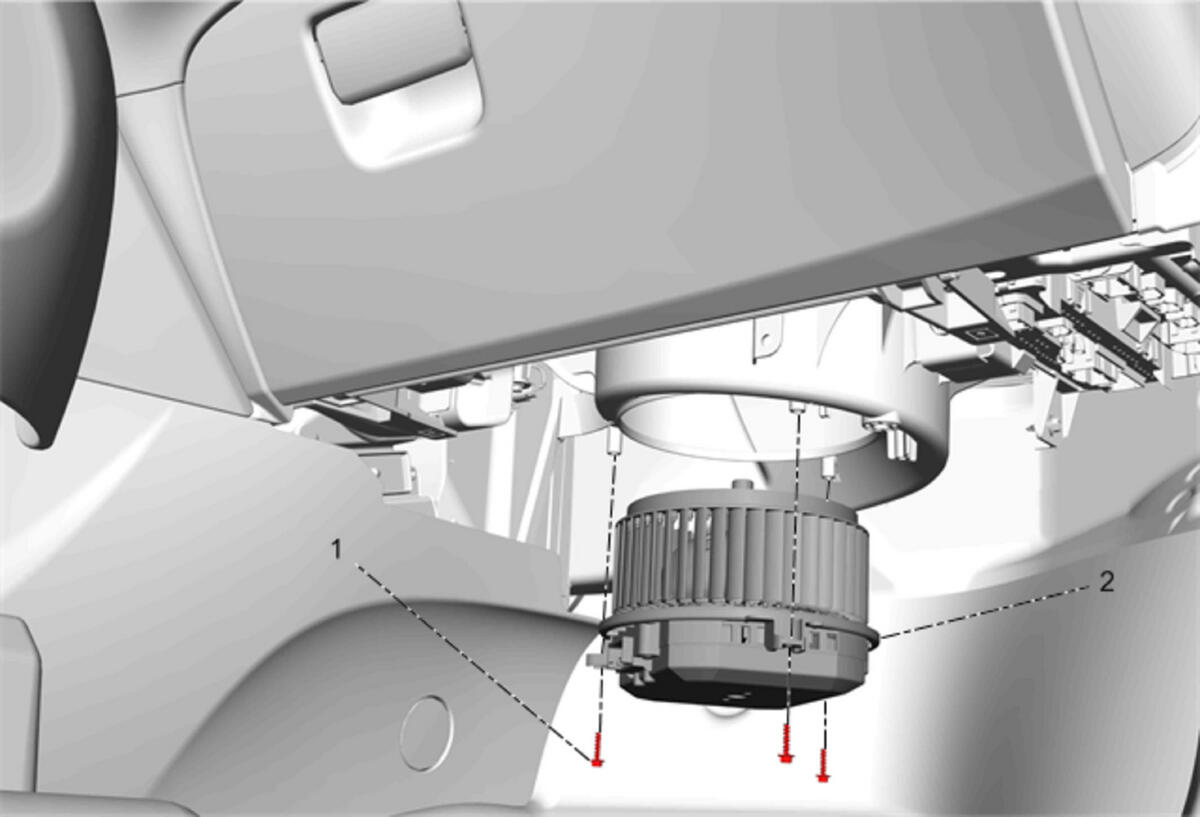

GM3819881Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
Preliminary Procedure
Floor Front Air Outlet Duct Replacement - Right Side (Inner) Floor Front Air Outlet Duct Replacement - Right Side (Outer)
1 Blower Motor Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.2 N.m (11 lb in)
2 Blower Motor Assembly
Procedure
Disconnect the electrical connector.
