Installation Procedure

  1. GM4573848Courtesy of GENERAL MOTORS COMPANY

    Generator Splash Shield (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Nut (2) - Install and tighten 22 N.m (16 lb ft)
  3. Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle
  5. GM4573844Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)

  6. Fig 1: Drive Belt Routing (LTG With Generator Shield)
    GM2812339Courtesy of GENERAL MOTORS COMPANY

    Drive Belt (1) - Install - Drive Belt Replacement (LTG)

  7. Lower the vehicle.

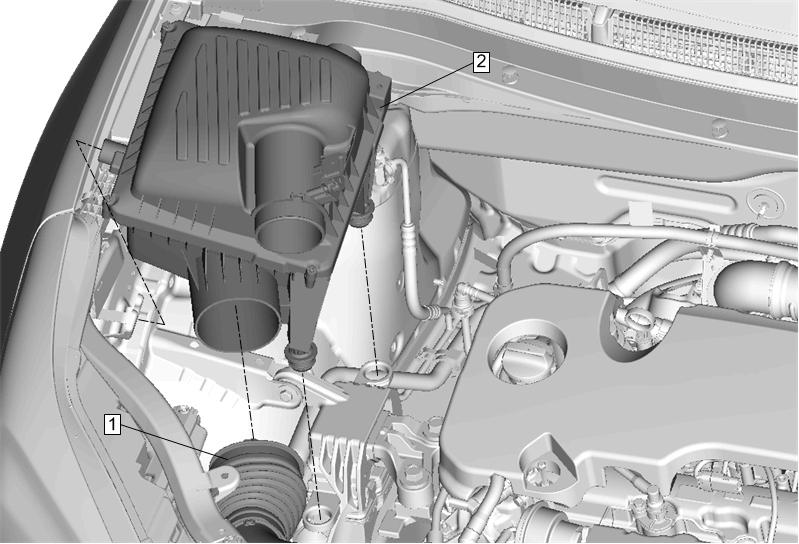

  8. GM4530709Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (2) - Install - Air Cleaner Assembly Replacement (LTG)

  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
