Installation Procedure

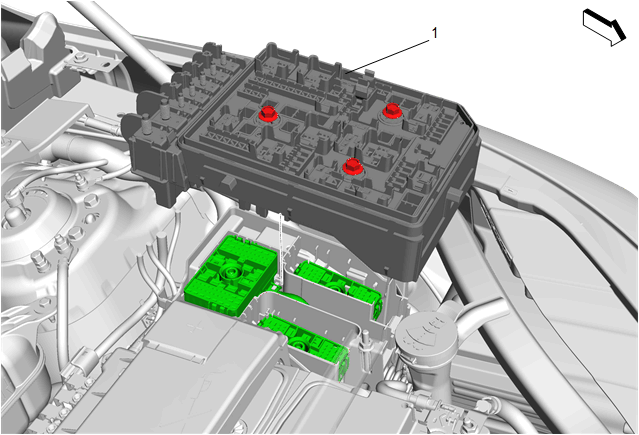

  1. GM5203857Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block (1) - Install

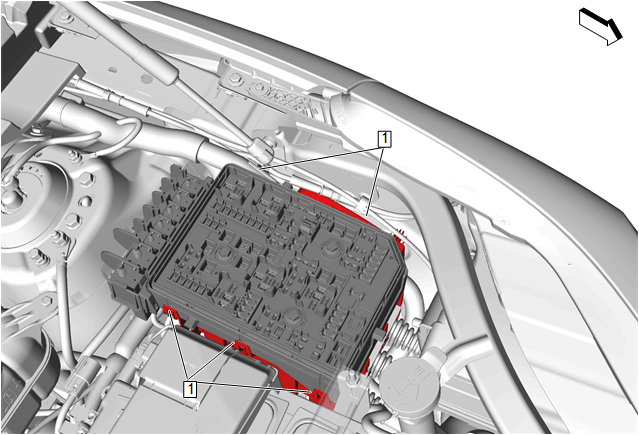

  2. GM5203852Courtesy of GENERAL MOTORS COMPANY

    Retaining Tab (1) - Engage [5x]

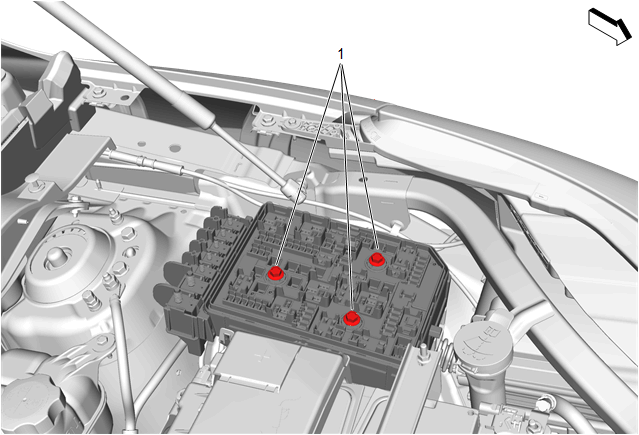

  3. GM5203850Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Engine Wiring Harness Junction Block Bolt (1) - Install and tighten [3x] 7 N.m (62 lb in)

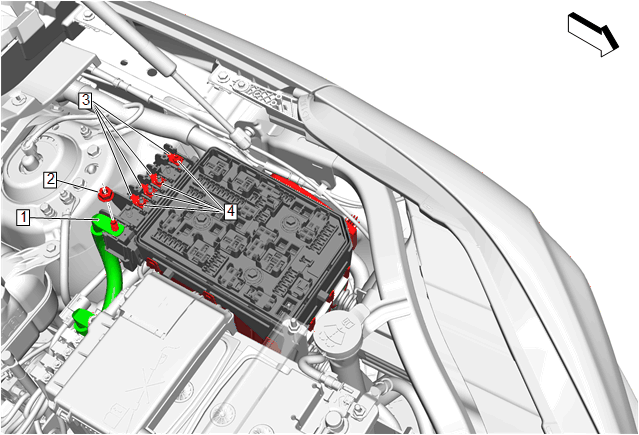

  4. GM5203840Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Junction Block Cable (1) - Install

  5. Battery Positive Junction Block Cable Nut (2) - Install and tighten 12 N.m (106 lb in)
  6. Wiring Harness Terminal (3) - Install [5x]
  7. Engine Wiring Harness Junction Block Nut (4) - Install and tighten [4x] 4.7 N.m (42 lb in)

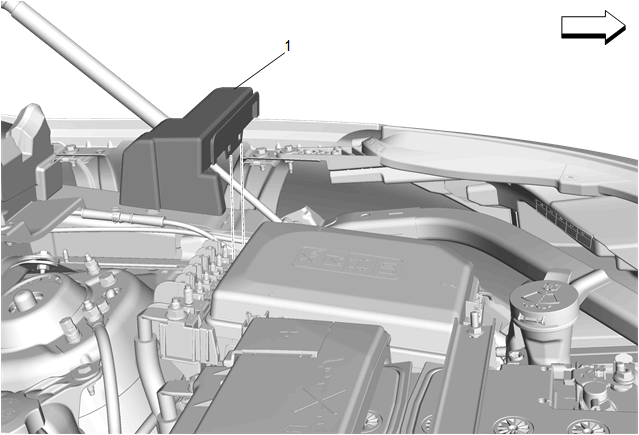

  8. GM5203823Courtesy of GENERAL MOTORS COMPANY

    Engage the retaining tabs and install the front compartment fuse block cover (1).

  9. Front Compartment Fuse Block Cover - Install - Front Compartment Fuse Block Cover Replacement
  10. Battery Negative Cable - Install - Battery Negative Cable Disconnection and Connection
