Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Generator Shield (3) - Remove - Generator Shield Replacement (LTG) Generator Shield Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Install the generator nut (1) and finger tighten.
Courtesy of GENERAL MOTORS COMPANY

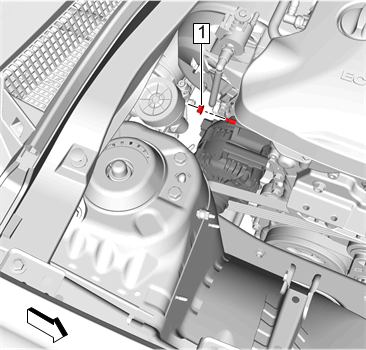

Fuel Feed Pipe (1) - Remove - Fuel Feed Pipe Replacement (Engine LTG)Fuel Feed Pipe Replacement (Engine LCV)
Courtesy of GENERAL MOTORS COMPANY

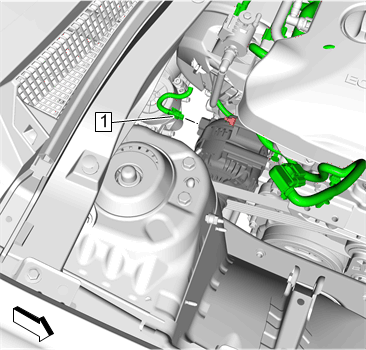

Evaporative Emission Canister Purge Tube (1) - Reposition - Evaporative Emission Canister Purge Tube Replacement (LTG)Evaporative Emission Canister Purge Tube Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Solenoid Valve Hose (1) - Reposition - Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LTG)Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Fig 1: Drive Belt Routing (LCV & LTG With Generator Shield)
Courtesy of GENERAL MOTORS COMPANY

Drive Belt (1) - Remove - Drive Belt Replacement (LCV)Drive Belt Replacement (LTG)
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Protective Cap (2) - Remove
Generator Nut (1) - Remove

NOTE:

Anti-rotation tab is in the 12 o'clock position (arrow).
