Power Transfer Unit Case Disassembled View
>>

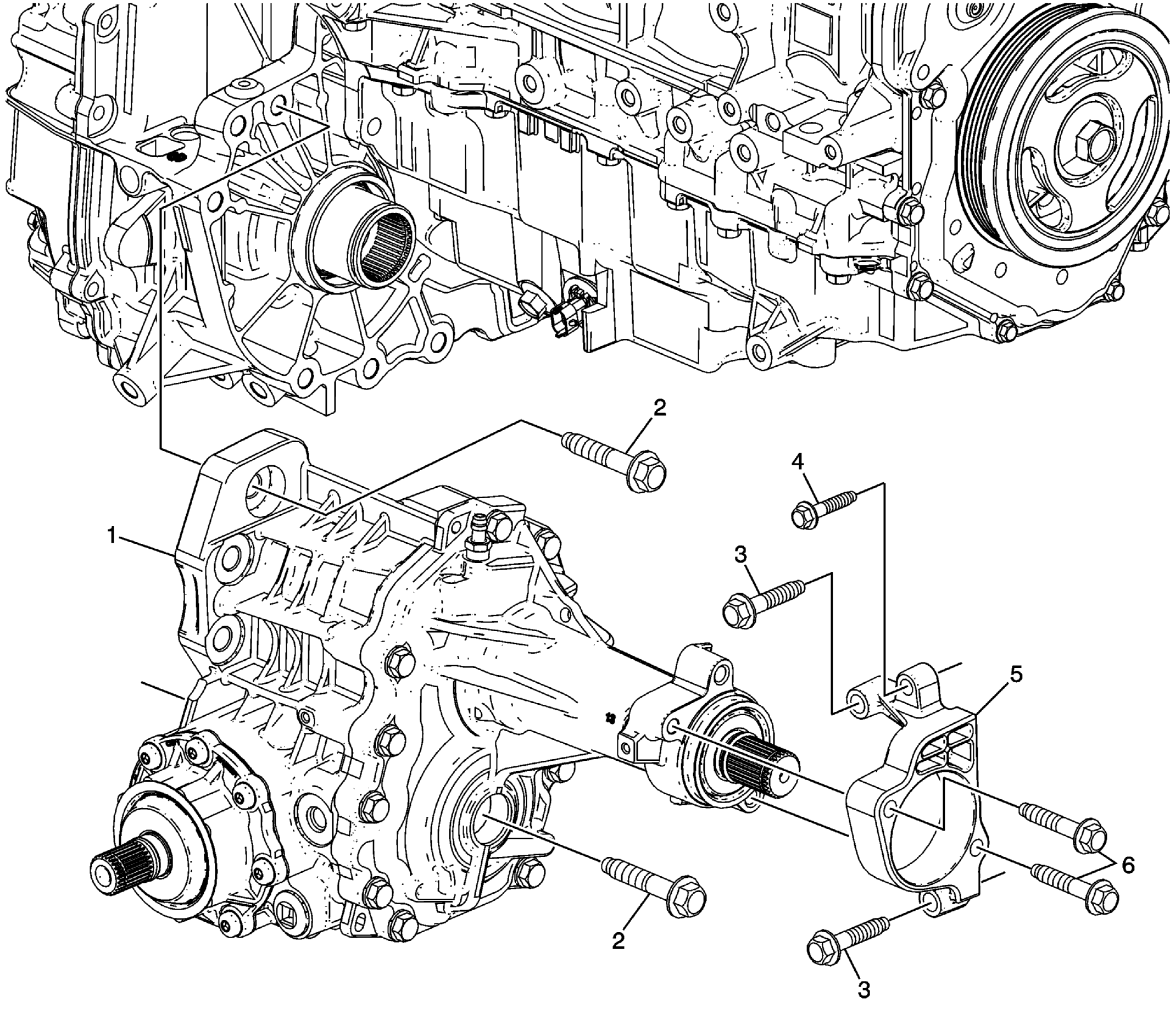

Power Transfer Unit Mounting to M2D Transmission
Power Transfer Unit Mounting to M2D Transmission
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Transfer Unit
2
Power Transfer Unit-to-Transmission Bolt
3
Power Transfer Unit-to-Engine Bracket Bolt
4
Power Transfer Unit-to-Engine Bracket Bolt
5
Power Transfer Unit Bracket
6
Power Transfer Unit Bracket-to-Extension Housing Bolt
