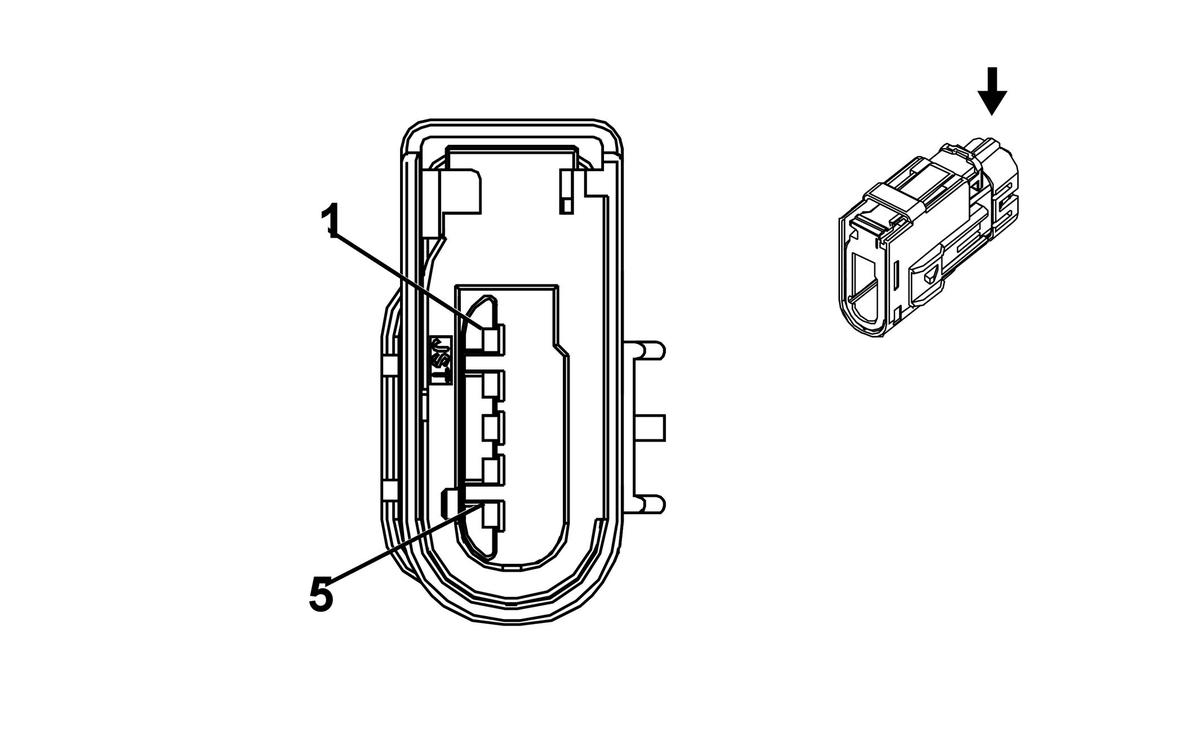

K109 Frontview Camera Module (UVH)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 13582038
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way M 1.2 Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/YE |
6972 |
Camera Signal 2 + |
I |
UVH |
| 2 |
0.5 |
WH |
6974 |
Camera Low Reference |
I |
UVH |
| 3 |
0.5 |
WH/BU |
6973 |
Camera Signal 2 |
I |
UVH |
| 4 |
0.5 |
BK/WH |
1351 |
Signal Ground |
I |
UVH |
| 5 |
0.5 |
GN/YE |
6840 |
Auxiliary Device 2 Switched Voltage |
I |
UVH |
