B233B Radar Sensor Module - Long Range

Courtesy of GENERAL MOTORS COMPANY

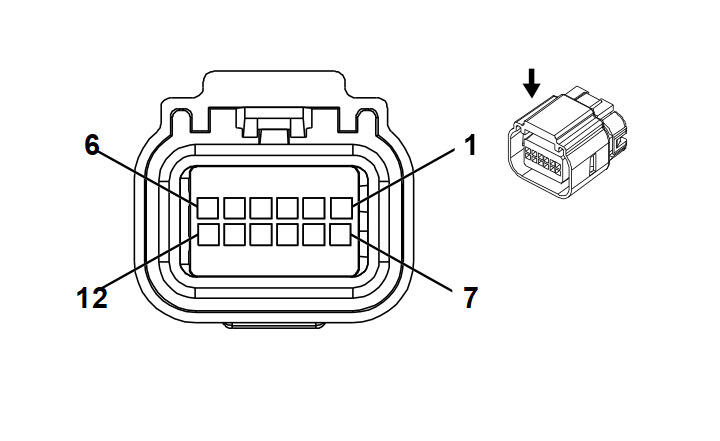

Connector Part Information Harness Type: Forward Lamp OEM Connector: 13582067 Service Connector: 19299773 Description: 12-Way F 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300649	J-35616-16 (LT GN)	J-38125-553	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	WH	3811	High Speed GMLAN Serial Data (-) 4	I	KSG
3	0.5	BU/VT	3813	High Speed GMLAN Serial Data (+) 4	I	KSG
4	0.5	WH	3811	High Speed GMLAN Serial Data (-) 4	I	KSG
5	0.5	BU/VT	3813	High Speed GMLAN Serial Data (+) 4	I	KSG
6	0.5	GY/VT	3808	Front Object Sensor Control 2	I	KSG
7	0.5	BK	1150	Ground	I	KSG
8 - 9	-	-	-	Not Occupied	-	-
10	0.5	WH	3811	High Speed GMLAN Serial Data (-) 4	I	KSG
11	0.5	BU/VT	3813	High Speed GMLAN Serial Data (+) 4	I	KSG
12	-	-	-	Not Occupied	-	-
