Radiator Assembly Components

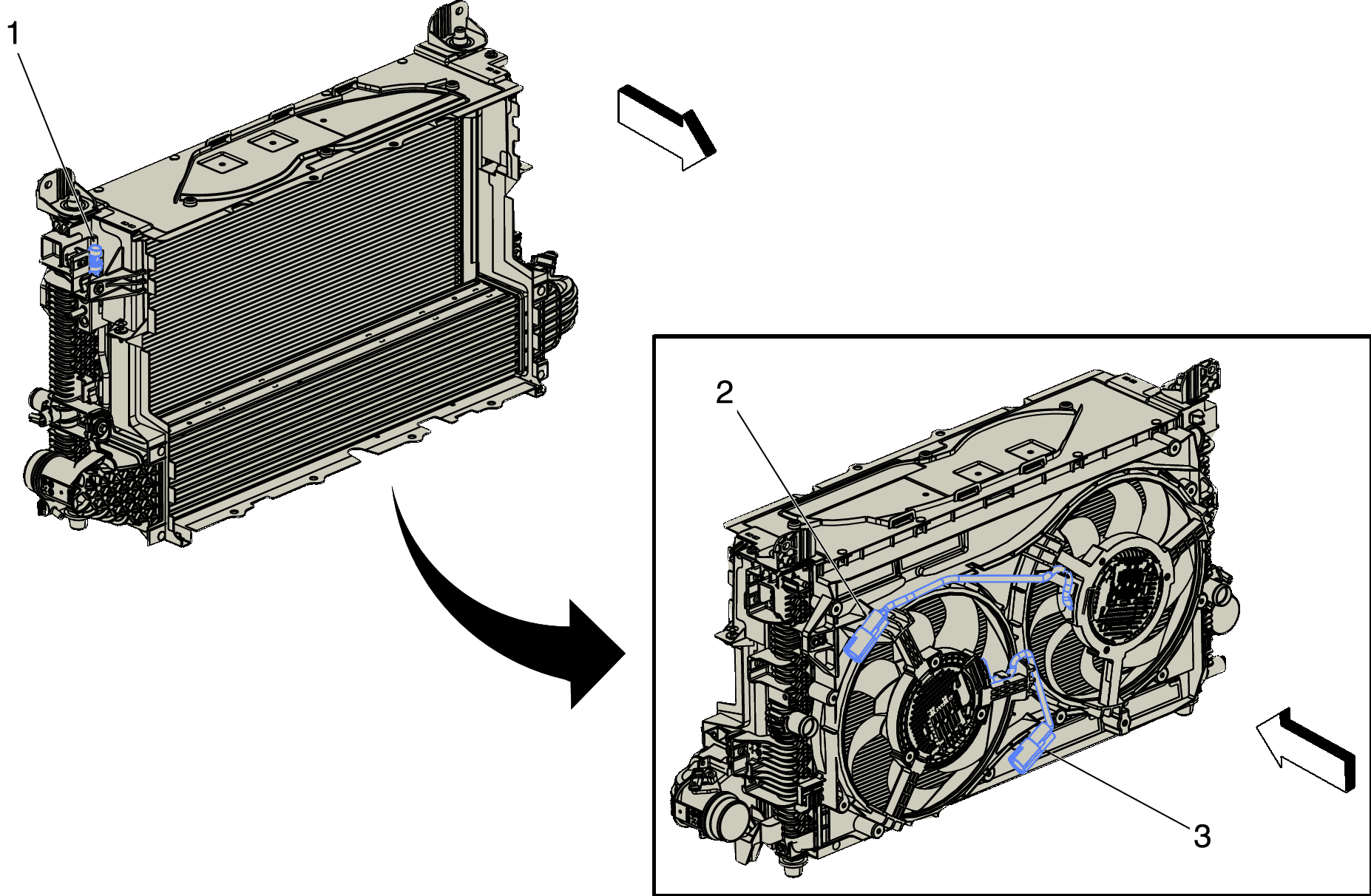

GM3952995Courtesy of GENERAL MOTORS COMPANY
Radiator Assembly Components

Items
1. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
2. G10R Cooling Fan Motor - Right (LTG) G10R Cooling Fan Motor - Right
3. G10L Cooling Fan Motor - Left (LTG) G10L Cooling Fan Motor - Left
