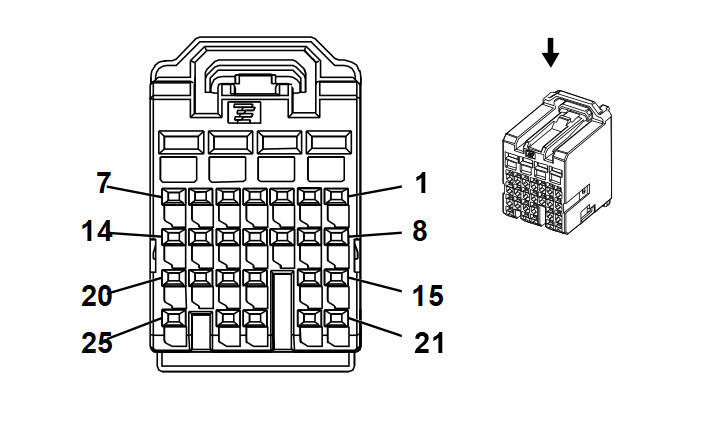

K9 Body Control Module X3
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13576037
- Service Connector: 13576037
- Description: 25-Way F 0.64, 2.8 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
YE |
7556 |
Lighting Control Switch Reference |
I |
- |
| 5 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
KSG/K34 |
| 10 |
0.35 |
BK/GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 11 |
0.35 |
WH/GN |
534 |
High Idle Switch Control |
I |
- |
| 12 |
0.35 |
WH/GN |
663 |
Hazard Switch Left Turn Signal |
I |
- |
| 13 |
0.35 |
YE/BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
GY/GN |
5737 |
Adaptive Cruise Control Gap Up/Down Switch Signal |
I |
KSG/UEU |
| 17 |
0.35 |
YE/BN |
307 |
Headlamp Switch Flash To Pass Signal |
I |
- |
| 18 |
0.35 |
GN/WH |
3287 |
Horn Switch Signal |
I |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 21 - 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.35 |
VT/BU |
664 |
Hazard Switch Right Turn Signal |
I |
- |
| 25 |
0.35 |
WH/BK |
94 |
Windshield Washer Switch Signal |
I |
- |
