Automatic Transmission Components (M2D)

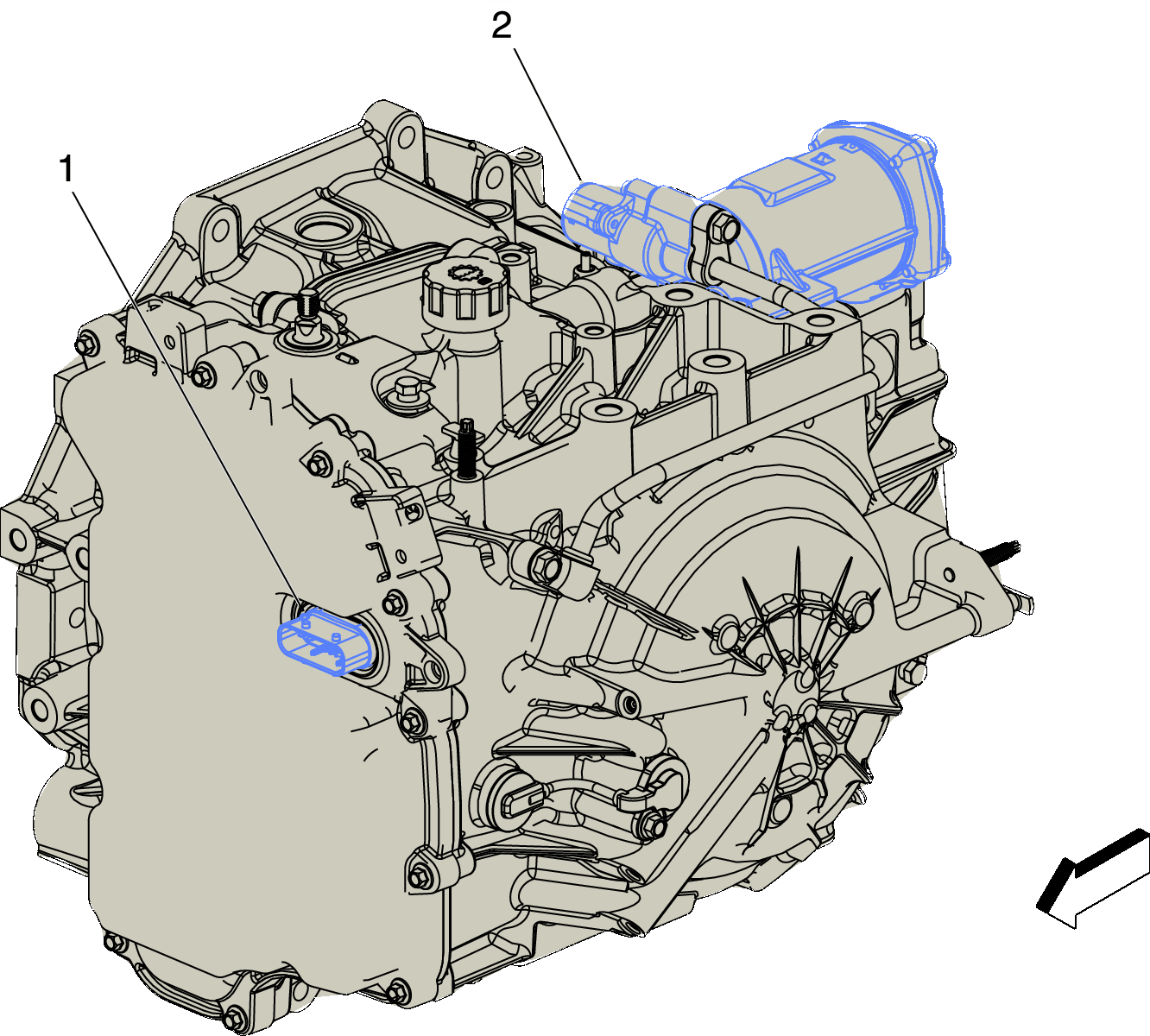

GM3953032Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Components (M2D)

Items
1. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly
2. B280 Automatic Transmission Accumulator Solenoid Valve B280 Automatic Transmission Accumulator Solenoid Valve
