Battery Monitor Module Replacement

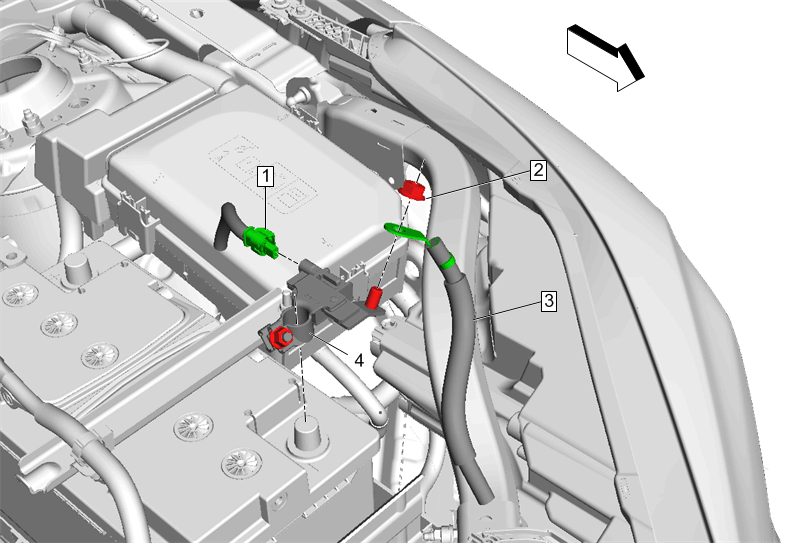

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection . |
|
| 1 | Body Harness Connector |
| 2 | Battery Negative Cable Fastener
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 3 | Battery Negative Cable |
| 4 | Battery Monitor Module Procedure Perform the battery sensor learn procedure. Battery Sensor Module Learn |
