Data Communication System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>

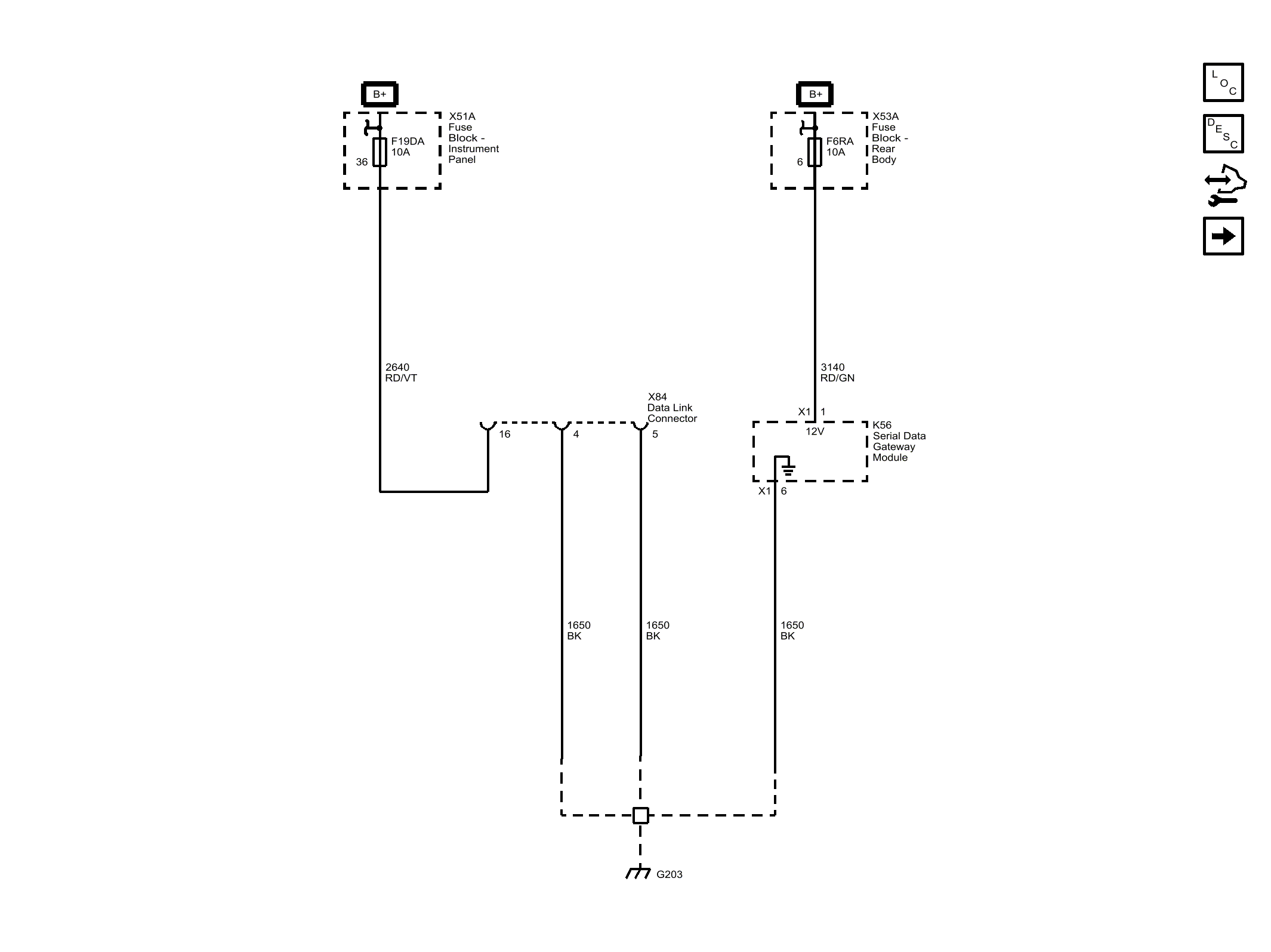

Serial Data Gateway Module and Data Link Connector Power and Ground
Serial Data Gateway Module and Data Link Connector Power and Ground
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
