Body Control Module Bracket Replacement

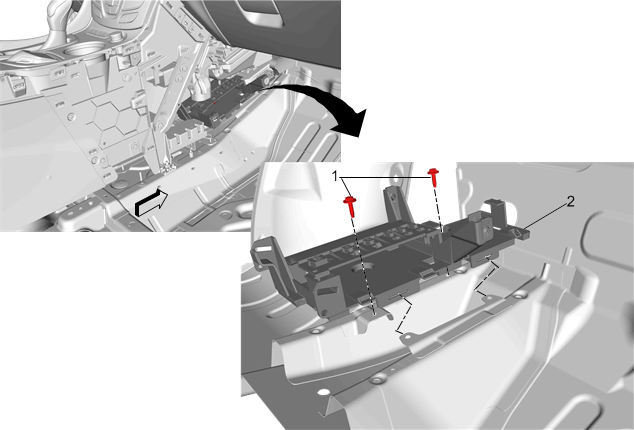

| Callout | Component Name |
|---|---|
| Preliminary Procedure Body Control Module Replacement |
|
| 1 | Body Control Module Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Body Control Module Bracket Procedure Transfer components as necessary. |
