Accessory and Liftgate Control Module Replacement (Acadia/Traverse)

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

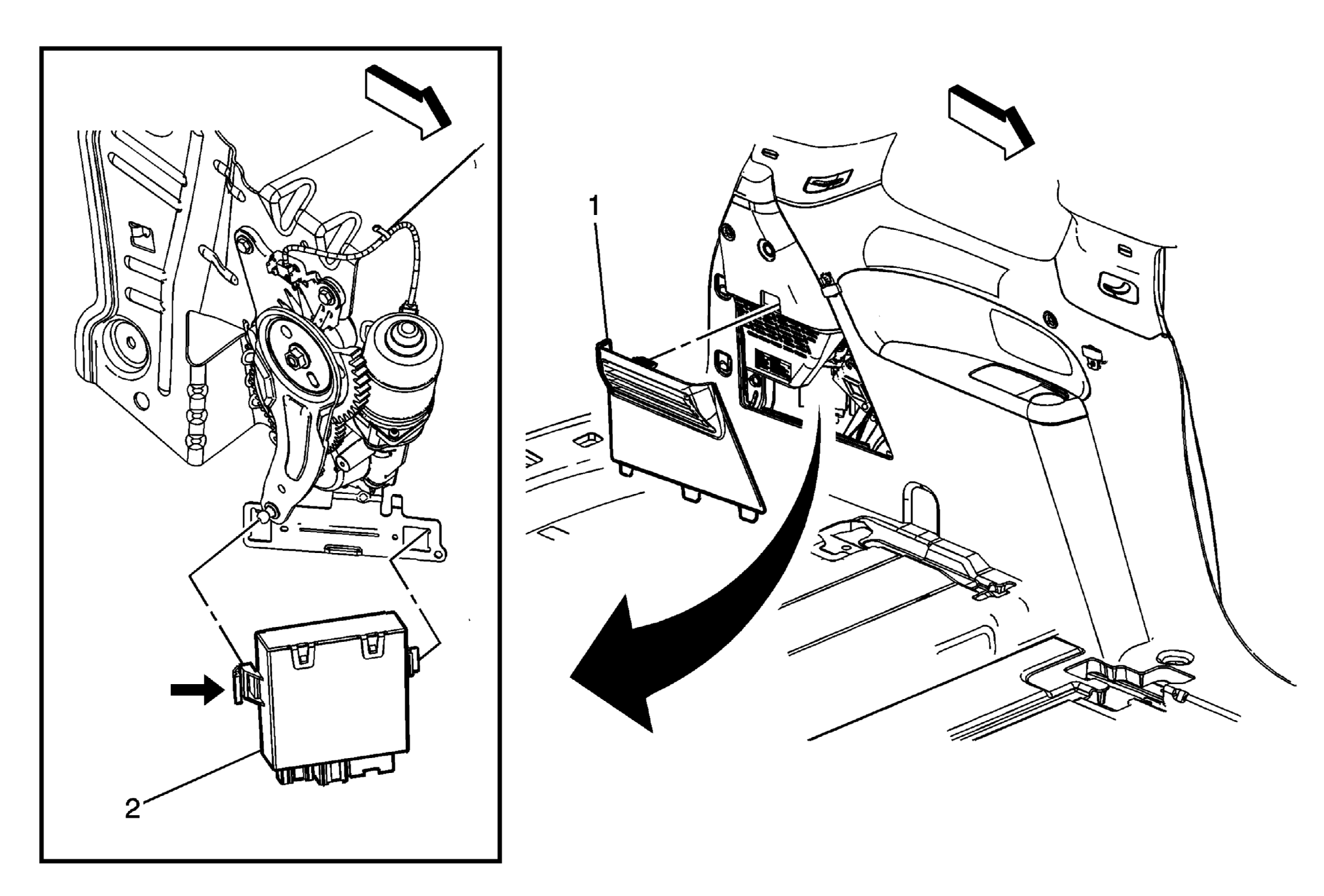

Fig 1: Accessory & Liftgate Control Module (Acadia/Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Body Side Trim Panel Stow Compartment Door Assembly
2	Accessory and Liftgate Control Module Procedure Disconnect the electrical connectors. Reprogram the accessory and liftgate control module if replaced. Refer to Control Module References . TIP: Push in the tab to release the module from the liftgate actuator assembly.

Callout

Component Name

Body Side Trim Panel Stow Compartment Door Assembly

Accessory and Liftgate Control Module

Procedure

Disconnect the electrical connectors.
Reprogram the accessory and liftgate control module if replaced. Refer to Control Module References .

TIP: Push in the tab to release the module from the liftgate actuator assembly.
