Section 19 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Digital Radio (U2K or UBS)
Digital Radio (U2K or UBS)
WARNING:
This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

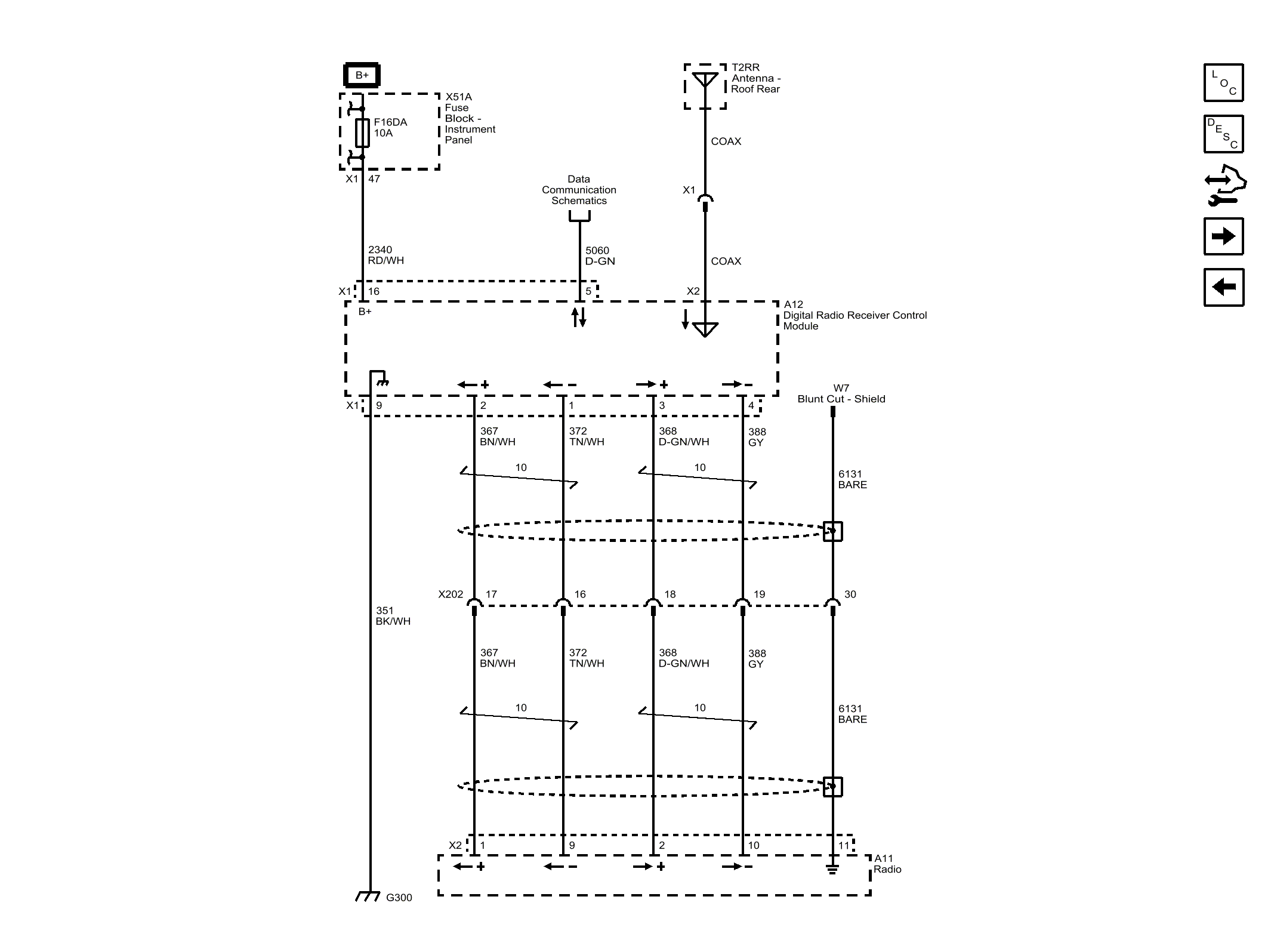

Fig 1: Digital Radio (U2K or UBS)
Courtesy of GENERAL MOTORS COMPANY
