Video Display Replacement (U42/C3U)

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

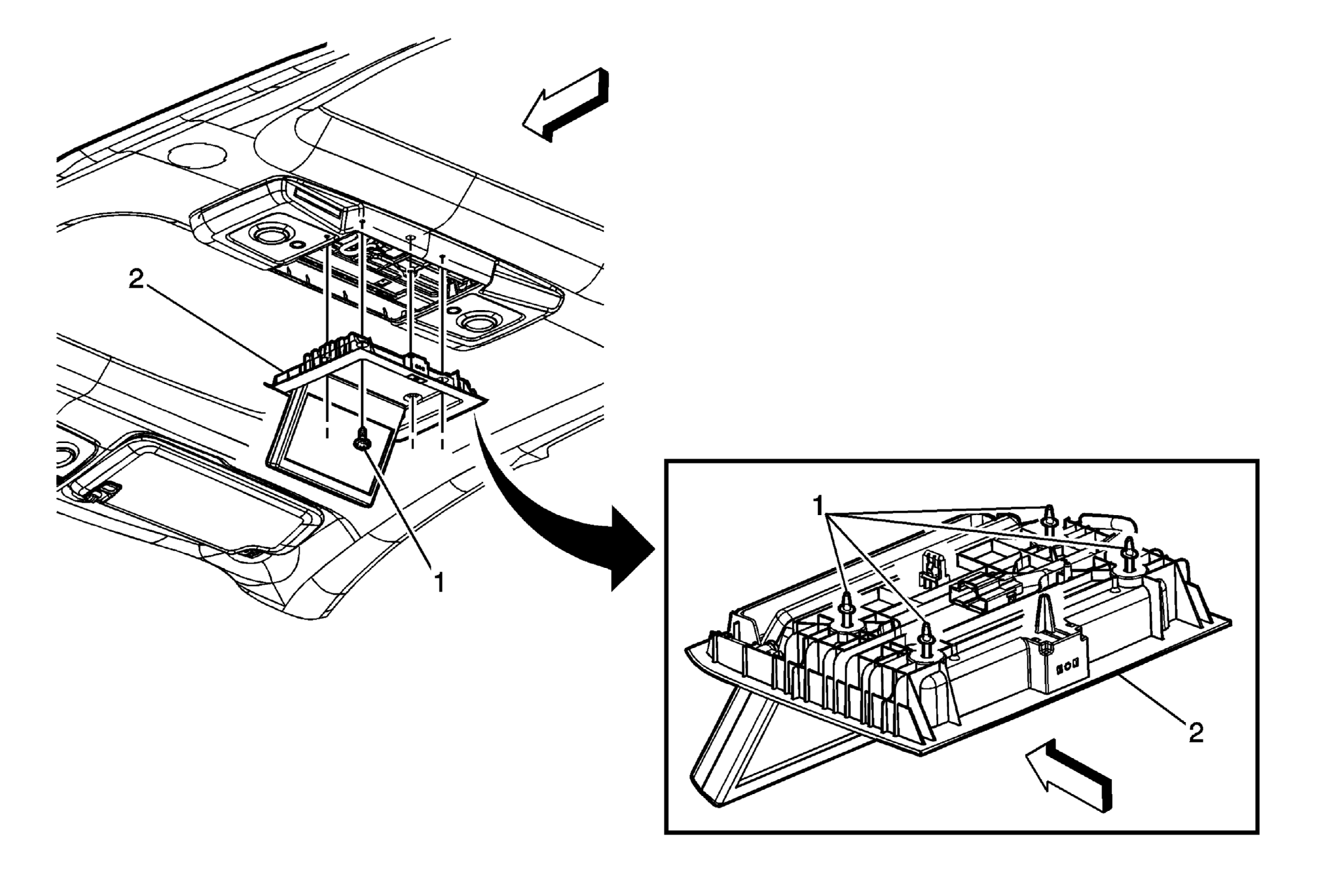

Fig 1: Video Display (U42/C3U)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Video Display Assembly Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded. Tighten 2 N.m (18 lb in)
2	Video Display Assembly Procedure Pull down to disengage the retainer clip and remove from the vehicle. Disconnect the electrical connector.

Callout

Component Name

Video Display Assembly Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedure
Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded.
Tighten
2 N.m (18 lb in)

Video Display Assembly

Procedure

Pull down to disengage the retainer clip and remove from the vehicle.
Disconnect the electrical connector.
