Radio Speaker Amplifier Replacement (With UQA/UQS)

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

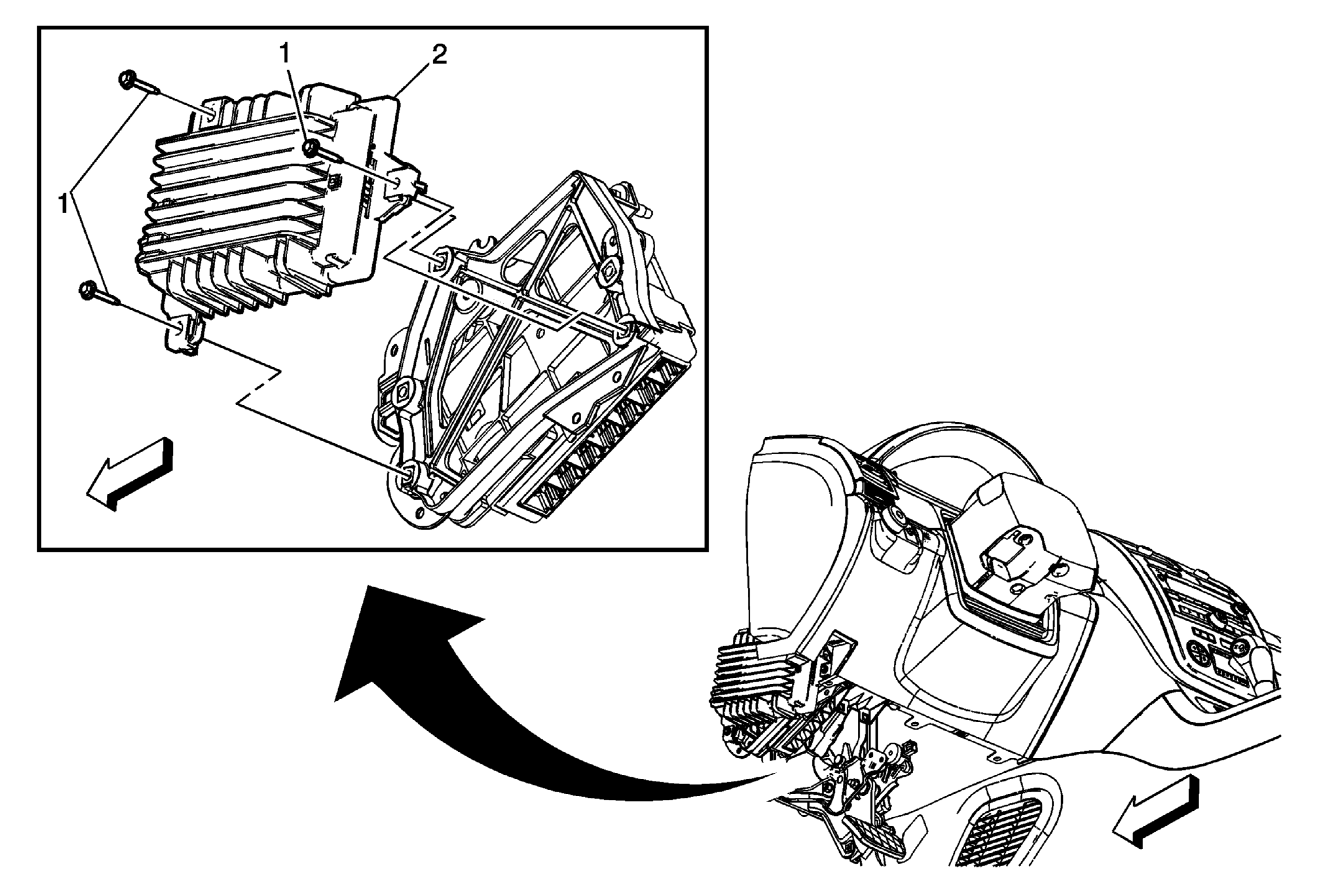

Fig 1: Radio Speaker Amplifier (With UQA/UQS)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side . Reposition the parking brake lever pedal assembly to assist in gaining access to the amplifier. Unplug the inputs into the module on the right side of the amplifier bracket to clear the wires and plugs to make the fasteners more accessible.
1	Radio Speaker Amplifier Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Speaker Amplifier Assembly Procedure Remove the module on the right side of the amplifier bracket by sliding it out.

Callout

Component Name

Preliminary Procedure

Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
Reposition the parking brake lever pedal assembly to assist in gaining access to the amplifier.
Unplug the inputs into the module on the right side of the amplifier bracket to clear the wires and plugs to make the fasteners more accessible.

Radio Speaker Amplifier Fasteners (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Speaker Amplifier Assembly
Procedure
Remove the module on the right side of the amplifier bracket by sliding it out.
