Radio Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

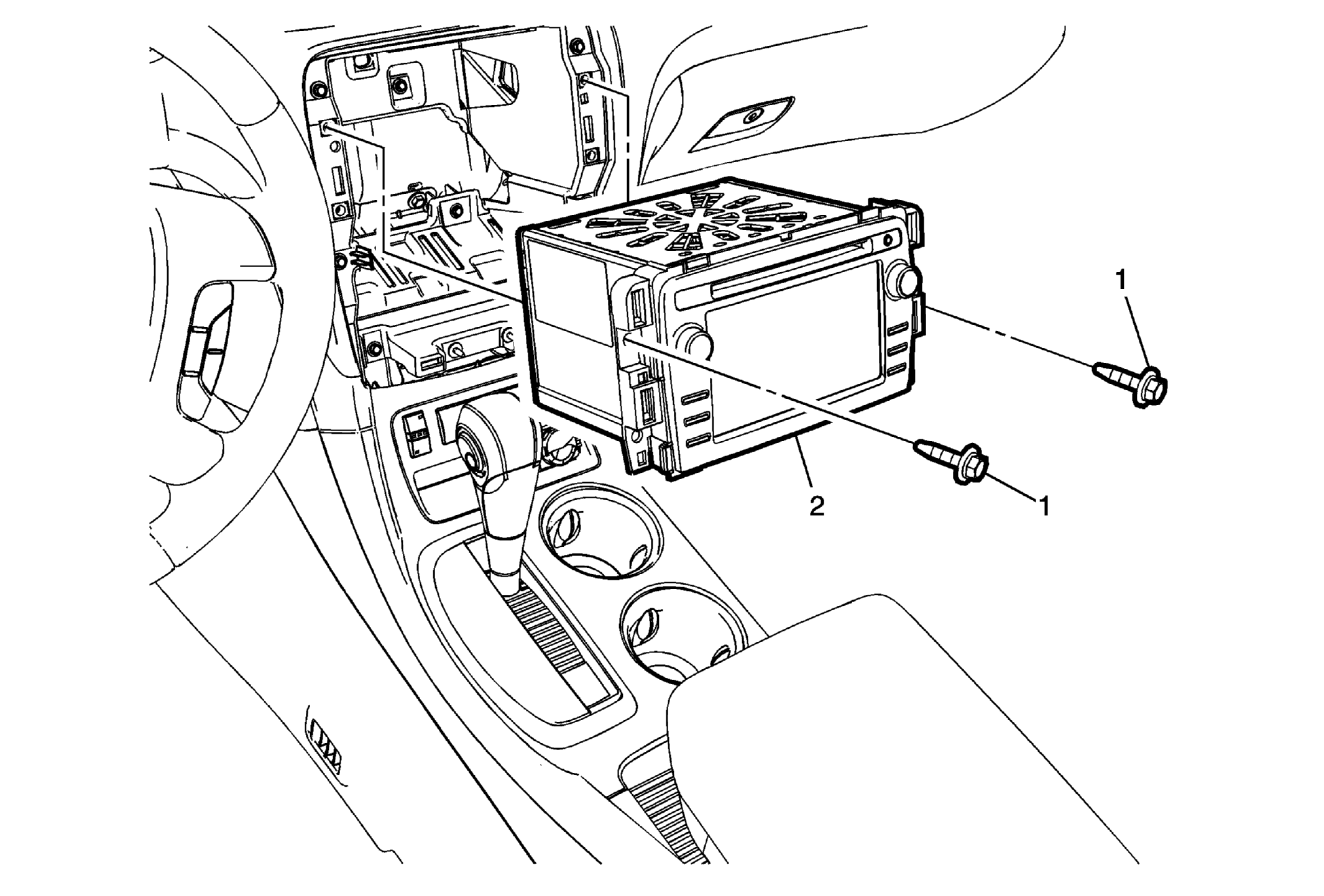

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hazard warning switch. Refer to Hazard Warning Switch Replacement .
1	Radio Fasteners (Qty: 2) CAUTION: Refer to Component Fastener Tightening Caution .
2	Radio Assembly Procedure Disconnect the electrical connector. Disconnect the antenna cable. Reprogram the radio after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the hazard warning switch. Refer to Hazard Warning Switch Replacement .

Radio Fasteners (Qty: 2)

CAUTION:

Refer to Component Fastener Tightening Caution .

Radio Assembly

Procedure

Disconnect the electrical connector.
Disconnect the antenna cable.
Reprogram the radio after replacement. Refer to Control Module References .
